5' F07 GT 535d Exhaust manifold-AGR

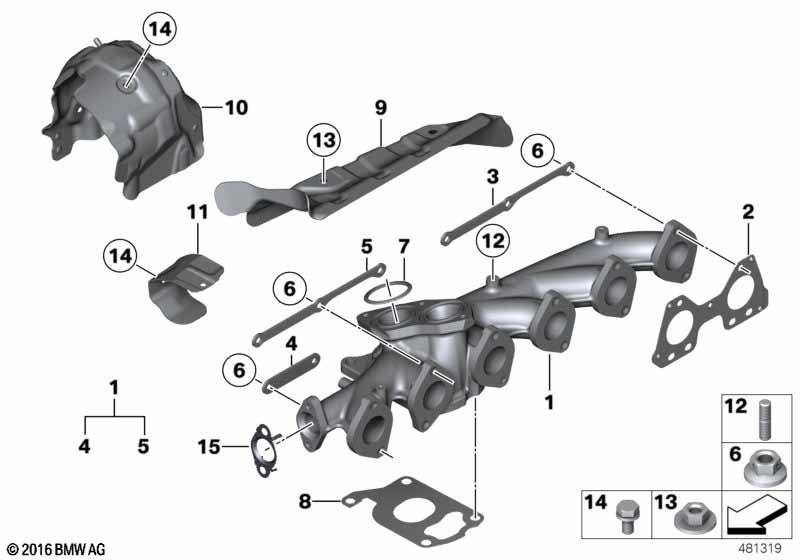

Exhaust manifold-AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exhaust manifold 1 11627805454
02 Gasket Steel 3 02/2013 11627811221 $11.81 ENDED
02 Gasket Steel 3 11628509783
03 Reinforcement plate 3 09/2012 11628508282
03 Reinforcement plate 3 11628572121
04 Reinforcement plate 1 11627823053
06 Flange nut M7 12 09/2017 11627800122 ENDED
06 Flange nut M7 12 11628597827
07 Gasket Steel 2 11657810781
08 Gasket Steel 1 11627805457
09 Heat protection shield 1 11628508139
10 Heat protection shield 1 11628515517
11 Heat protection shield 1 11628508137
12 Stud bolt M6X22 2 07129905552 $4.44
13 Hex nut BM6-8-ZNS3 2 07129904870 $0.36
14 Hex bolt with washer M6X12-U1-8.8 4 07119904517 $0.36
15 Gasket Steel 1 11628576287
Notes
  • ENDED = the part has been discontinued (no longer available).
