5' F07 GT 535d Repair kit, exposed timing chain, top

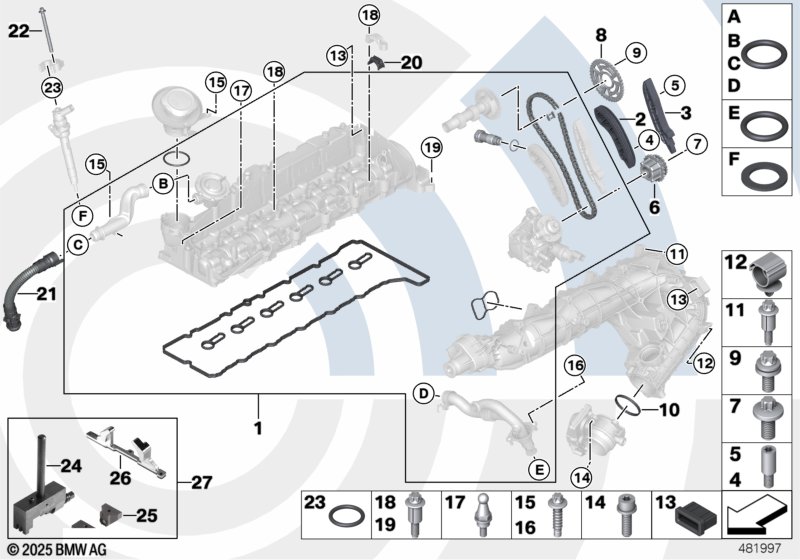

Repair kit, exposed timing chain, top
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Observe repair instructions in REP-11
31 544!
Please observe PuMA measure 10134828!
01 Repair kit, exposed timing chain, top VALUE LINE 1 12/2010 11312452822
Engine oil change is required!
Only in conjunction with positions
24,25,26
01 Repair kit, exposed timing chain, top VALUE LINE 1 12/2010 11312452823
Engine oil change is required!
Only in conjunction with positions
24,25,26
Observe repair instructions in REP-11
31 544!
Please observe PuMA measure 10134828!
Engine oil change is required!
Only in conjunction with positions
24,25,26
01 Repair kit, exposed timing chain, top VALUE LINE 1 12/2010 11312452823
Only suitable for cylinder head cover
with identification
7 800 309-07 and above
7 812 894-06 and above
7 823 181
8 507 607
02 Chain tensioner 1 11317797898
03 Guide rail 1 11317797899
04 Bolt 1 13527797908
05 Bolt 2 11317797900
06 Sprocket 1 13527800025
07 ASA-Bolt M12X1 1 13527800395
08 Camshaft sprocket 1 11318509927
09 ASA-Bolt M7X17,3 3 11317797516
10 Profile-gasket 1 11617801943
11 Fastening elements 7 11617807483
12 Cable clamp 1 11667805284
13 Rubber Mounting 2 17111712911 $1.18
14 Torx-bolt with washer M6X20-U1-8.8 3 07129905516 $0.96
15 Plastic bolt 5,0X19,5 3 11127805414 $1.58
16 Plastic bolt 6,0X18 5 11617805175
17 Pin 1 13717802668 $2.73
18 ASA-Bolt 6 11127802606
19 ASA-Bolt 25 07/2010 11127802605
19 ASA-Bolt 23 07/2010 11127802605
20 Decoupling element 8 07/2010 11127809138
20 Decoupling element 6 07/2010 11127809138
21 Filtered air pipe 1 13717805482
21 Filtered air pipe 1 13717805482
22 Screw 6 13537805256
23 O-ring 6 13537794553 $4.38
Observe repair instructions in REP-11
31 544!
24 Basic body 1 83302354962
24 Basic body 1 83302354983
25 Nietwerkzeug 1 83302354981
25 Spindle N57 1 83302409663
25 Female die N57 1 83302409664
26 Holder N57 1 83302408015
27 Riveting tool set 1 83302354985
Observe repair instructions in REP-11
31 544!
27 Supplementary kit N57 1 83302409647
