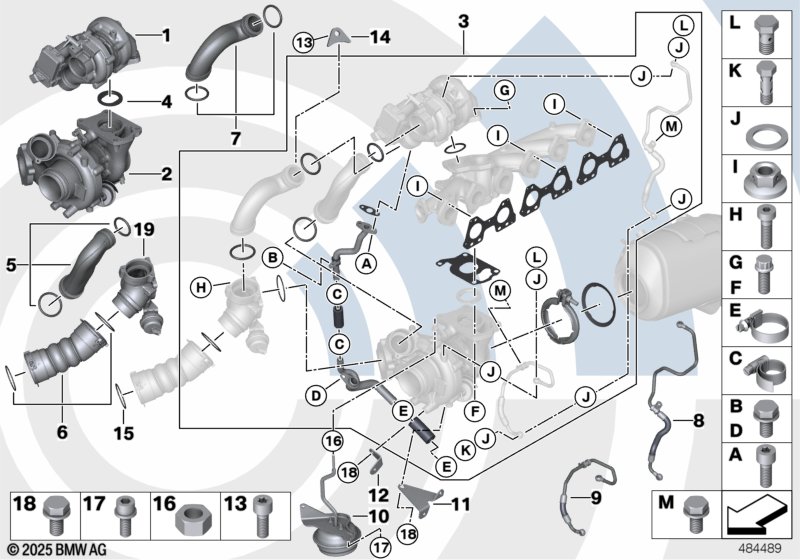

5' F07 GT 535d Turbocharger & install kit 'Value Line'

Turbocharger & install kit 'Value Line'
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please always observe repair
instructions 11 65 020!
01 AT-turbo charger 1 11657808361 +core
only in conjunction with
-- Installation kit for turbocharger VALUE LINE 1 11652456238
02 AT-turbo charger 1 11657808363 +core
only in conjunction with
-- Installation kit for turbocharger VALUE LINE 1 11652456238
03 Installation kit for turbocharger VALUE LINE 1 11652456238
04 Spacer ring 1 11658509942
05 Connection pipe 1 11657808168
06 Charge air line 1 11617805401 +core
07 Connection pipe 1 11657808167
08 Oil pipe 1 11427800615
09 Oil pipe 1 11427800616
10 Vacumm box 1 11658513664
11 Support 1 11657805468
12 Support 1 11658508094
13 ISA screw M6X16-8.8-ZNNIV 3 07129905536 $0.64
14 Mounting panel 3 11657823036
15 Preformed seal 1 11618506786 $8.69 ENDED
15 Preformed seal 1 13718596850
16 Hex nut M6-8-ZNNIV SI 1 07119905543 $0.38
17 Torx-bolt with washer M6X16-8.8-ZNNIV 3 07129904819 $0.38
18 Hex bolt with washer M8X16 5 07119905528 $0.62
18 Hex bolt with washer M8X16-Z1 5 07119900268 $0.53
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
