BMW Classic Motorsport E30 M3 Gr.A/DTM Instrument panel

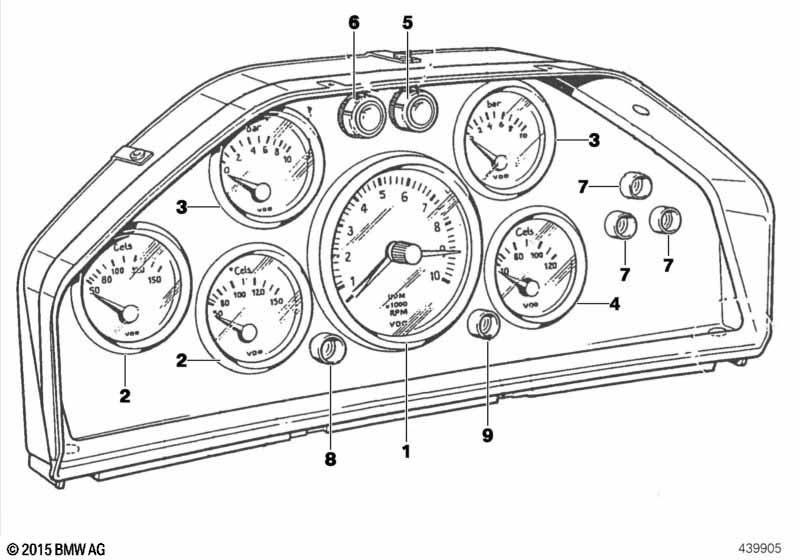

Instrument panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rubber Ring 1 62132206326 ENDED
01 Revolution counter 1 62132222571 ENDED
03 Anzeigeinstrument 0-10bar 2 62132200761 ENDED
04 Temperature indicator 0-120° VDO 1 62132230251 ENDED
06 Tell-tale GELB D=17MM 1 62142221530 ENDED
07 Tell-tale ORANGE D=10MM 3 62142230248 ENDED
08 Tell-tale GRÜN D=10MM 1 62142230249 ENDED
09 Tell-tale BLAU D=10MM 1 62142230250 ENDED
without graphics
10 Grundplatte Instrumente 1 62112230089 ENDED
11 Cover 1 62111368872 $30.02
12 Fillister head self-tapping screw B2,9X23 2 62111372267 $0.11 ENDED
13 Blind rivet nut M4 2 51142230254 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
