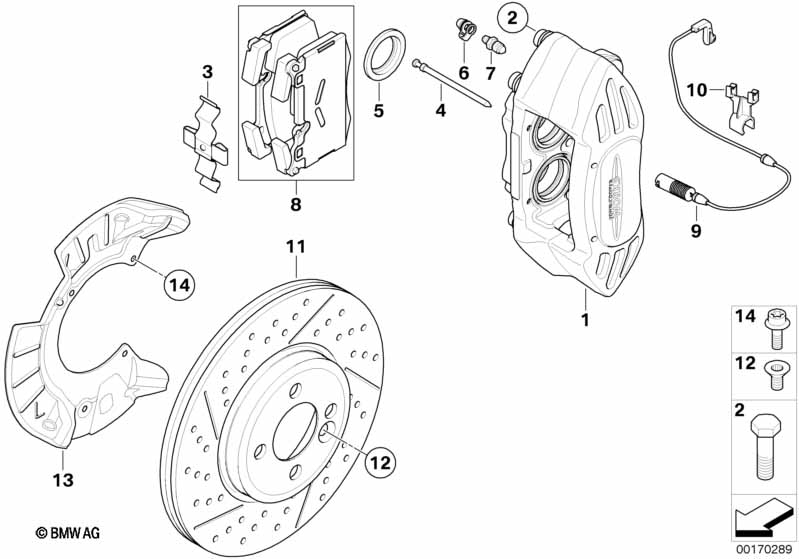

MINI Coupé R58 Cooper S JCW Sport brakes, front

JCW Sport brakes, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
John Cooper Works GP

P7KHA=No
01 Caliper housing left 1 10/2011 34106784589 $654.64 ENDED, +core
01 Caliper housing left 1 34106856651
01 Caliper housing right 1 10/2011 34106784590 $654.64 ENDED, +core
01 Caliper housing right 1 34106856652
02 Collar screw M12X1,5X32 ZNS3 4 34116772428 $1.85
03 Expansion spring 2 34106784591 $10.99 ENDED
03 Expansion spring 2 34106856301
04 Guide pin 4 34106784592 $12.05
05 Repair set brake caliper 2 34106784593 $11.05
06 Dust cap 2 34116780508 $1.95
07 Ventilation valve 2 34116780509 $3.12
08 Repair kit, brake pads asbestos-free 1 34116789157 $146.49
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
09 Brake pad wear sensor 1 08/2010 34356789329 $25.20
09 Brake pad wear sensor 1 08/2010 34356792572
10 Clip for brake pad wear sensor 1 34356783517
For vehicles with
Sport brake system

SZZDA=Yes
11 Brake disc ventilated, perforated 316X22 2 34116855782
11 Brake disc ventilated, perforated 316X22 2 34116784371 $150.00 ENDED
12 Torx-countersunk head screw M10X13 ZNS3 2 07136772426 $1.05
13 Protection plate left 1 34116772549 $35.71
13 Protection plate right 1 34116772550 $35.71
14 Torx screw M6X10 ZNS3 8 34106772427 $0.30
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
