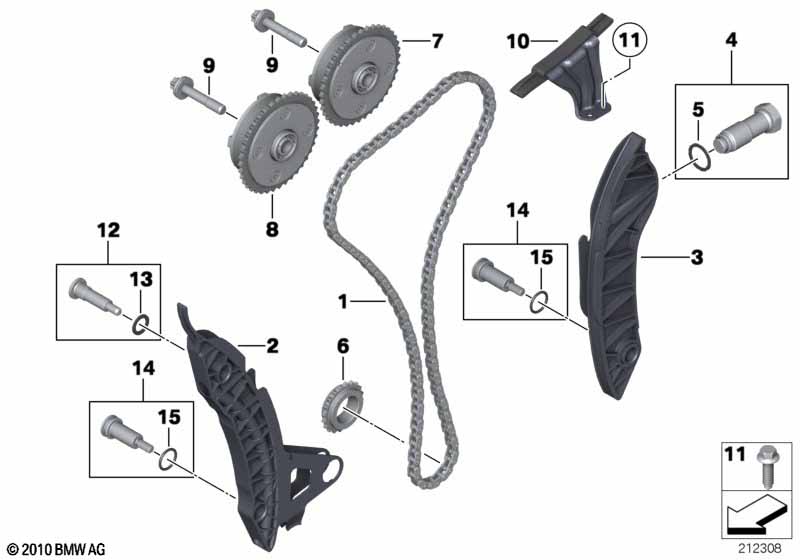

MINI Coupé R58 Cooper S Timing and valve train-timing chain

Timing and valve train-timing chain
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing chain 1 11318618318
02 Guide rail 1 11317577301 $32.22
03 Chain tensioner 1 11317533879 $15.38
04 Chain tensioner 1 11317607551
05 Gasket ring A22X27 1 11317631972
06 Sprocket 1 11217588996 $36.43
07 Adjustment unit, inlet camshaft 1 11367545862 $319.11
08 Adjustment unit, outlet camshaft 1 11367536085 $319.11
09 Torx bolt M10X1X52 2 11367536087 $1.60
10 Slide rail 1 11317577631 $15.77
11 Hex bolt M6X20 2 11317542856 $0.73
12 Bolt 1 11317534771 $5.27
13 Gasket ring A14X21 1 11317550461 $1.19
14 Bolt 2 11317534768 $5.27
15 O-ring 18,3X2,4 2 11317534770 $1.81
