MINI Coupé R58 Cooper S Cylinder Head

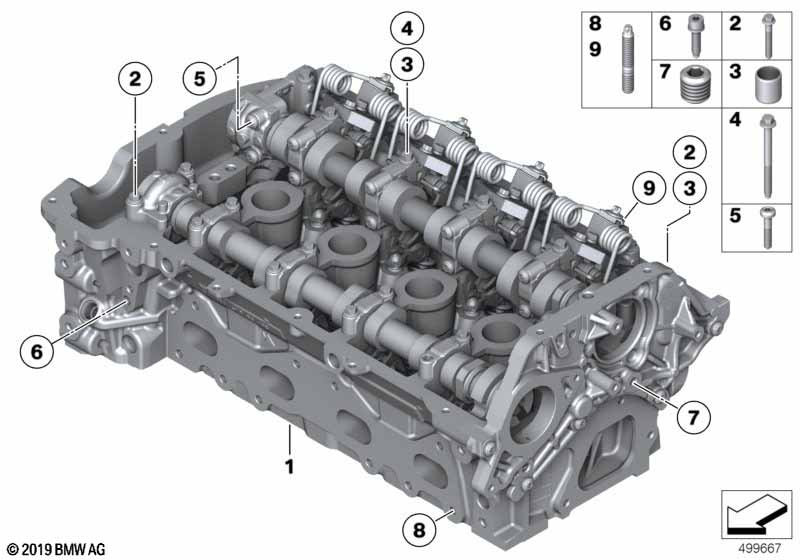

Cylinder Head
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder head w. intake valvetrain 1 03/2012 11127634077 +core
01 Cylinder head with valve gear 1 03/2012 11122470430
01 Cylinder head w. intake valvetrain 1 03/2012 03/2019 11127642266
01 Cylinder head with valve gear 1 03/2012 11122470431
02 Collar screw M6X40MM 21 11317542042 $1.08
03 Dowel D=7,5MM 13 11127606504
04 Fillister-head screw M6X70MM 7 11127534006 $1.08
05 Torx bolt M6X32MM 10 04/2016 11127571496 ENDED
05 Torx bolt M6X32MM 10 11127641799
06 Torx screw M6X22-PC-U0 1 01/2007 07129905854 $0.71
07 Screw plug M8X1 1 01/2007 03/2012 11127568039 $1.07
08 Stud bolt M8 10 11627583110 $1.07
09 Stud bolt M8 5 11627583110 $1.07
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
