MINI Coupé R58 Cooper S GA6F21WA mounting parts/gaskets

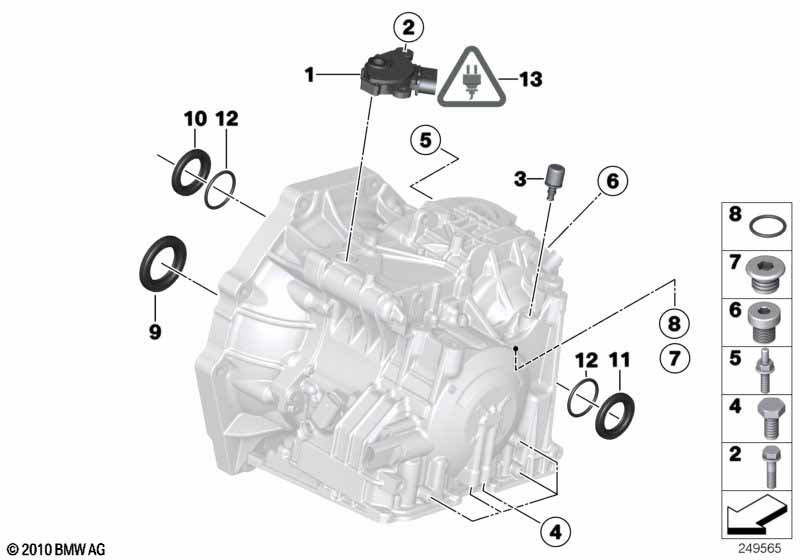

GA6F21WA mounting parts/gaskets
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Position switch 1 24157551089 $153.08
02 Hex bolt M6X20 2 24157570793 $0.60
03 Ventilation valve 1 24117566371 $11.53
04 Screw plug 5/16"-24UNF 7 24117551991
06 Screw plug M14X1,5X12 1 24117551102 $4.13
07 Screw plug M18X1,5X12 1 24117570794 $6.35
08 Gasket ring 24X18X2 1 24117551099 $1.10
09 Shaft seal 61X42,2X6 1 24127551992 $12.97
10 Shaft seal 63X38,5X8,6 1 24277560915 $25.35
11 Shaft seal 63X38,5X8,6 1 24277560915 $25.35
12 O-ring 31,7X2,6 2 24277551100 $2.33
13 Socket housing 10 POL. 1 24007545732 $4.36
only in conjunction with
-- Single conductor seal 0,13-1,0 MM² 1 12521732592 $0.38
-- Terminal socket JPT 0,5-1,0 MM² 1 12517548500 $0.50
