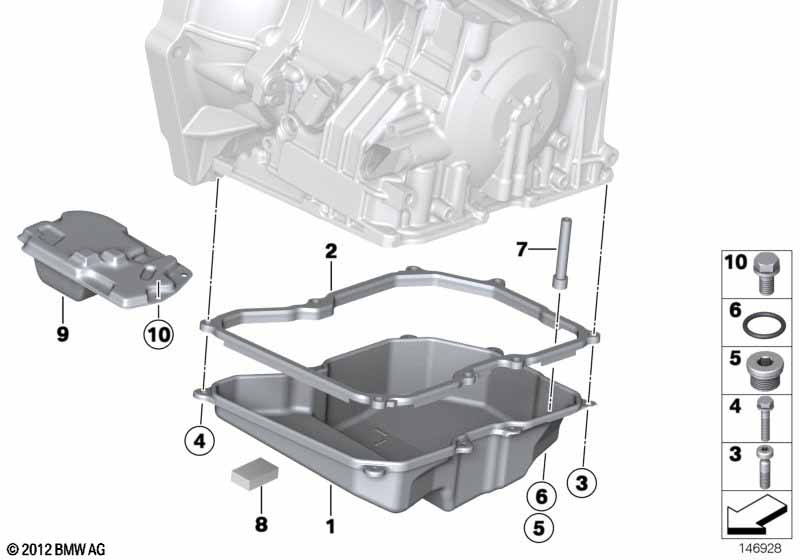

MINI Coupé R58 Cooper S GA6F21WA - oil pan

GA6F21WA - oil pan
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 24117566354 $80.38
02 Gasket, oil pan 1 24117566356 $68.48
03 Torx bolt M6X19 1 24117551081 $1.10
04 Hex bolt M6X21 7 24117570790 $1.23
05 Screw plug M10X1X9 1 24117570791 $3.92
06 Gasket ring 17X12X2 1 24117570792 $1.30
07 Overflow pipe 1 24117566357 $8.52
08 Magnet 2 24117551086 $1.42
09 Oil strainer 1 24347566358 $39.88
10 Hex bolt M6X14 3 24347551088 $0.18
