MINI Coupé R58 Cooper S Steering unit, electric (EPS)

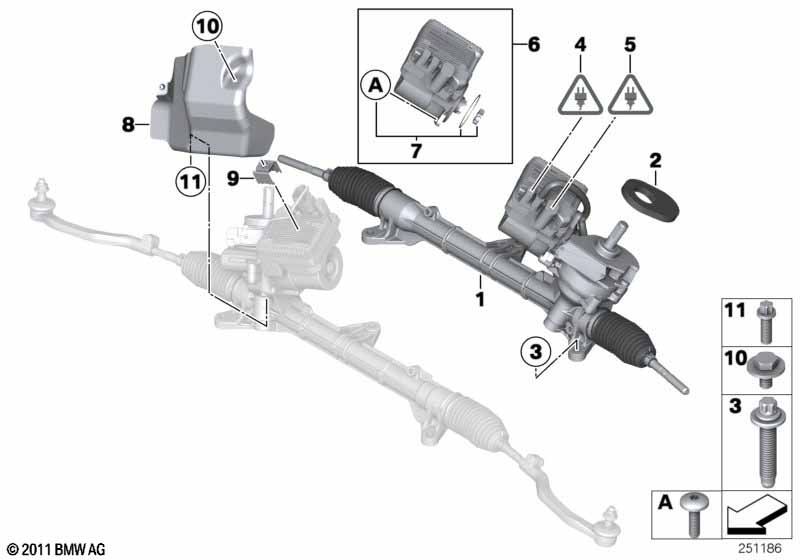

Steering unit, electric (EPS)
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. steering box, electr. 1 03/2012 32106793007 ENDED
Important! If 18-inch wheels are
entered in
vehicle documents a steering travel
limiter must be installed on the
steering
gear.
01 Exch. steering box, electr. 1 32106856876
Important! If 18-inch wheels are
entered in
vehicle documents a steering travel
limiter must be installed on the
steering
gear.
02 Gasket, bulkhead 1 32106777013 $5.56
03 Screw self-tapping M12X60 10.9 3 31116770291 $3.57
04 Socket housing 2 POL. 1 61139145405
only in conjunction with
-- Plug connection female LSK8 6-10MM² 1 12521436648 $2.47
-- Plug connection female LSK8 2,5-4,0MM² 1 12527508006 $3.70
05 Universal socket housing uncoded 4 POL. 1 61138365356 $3.10
only in conjunction with
-- Terminal socket MQS ELA 0,5-0,75 MM² AG 4 61136931880
-- Single conductor seal 0,5-1,5 MM² 1 61138353706 $0.27
06 EPS unit 1 32106856878
07 Mounting parts set 1 32106797178
Notes
  • ENDED = the part has been discontinued (no longer available).
