MINI Coupé R58 Cooper S Steering linkage/tie rods

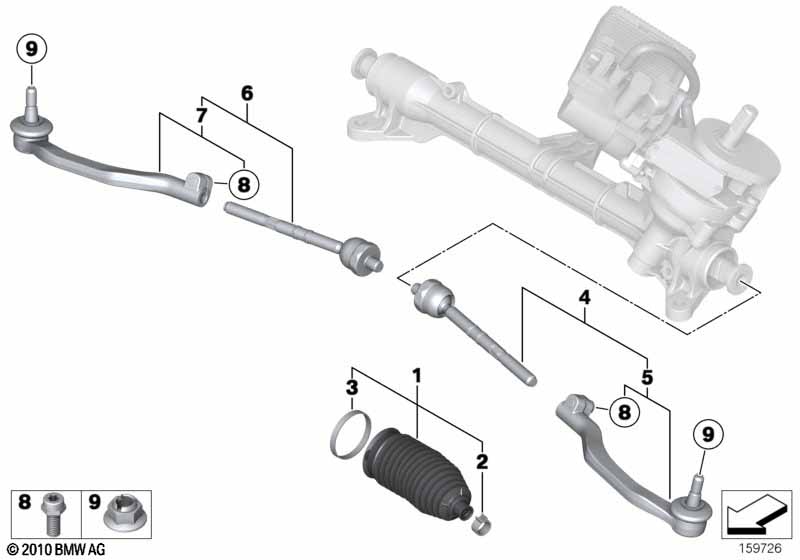

Steering linkage/tie rods
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair kit bellows 2 32106778560 $62.85
only in conjunction with
-- Grease FB-1 100G 1 83232208093
02 Clamp ring 2 32106777012 $3.03
03 Tension strap 2 32106777011 $2.90
04 Left tie rod 1 32106778547 $138.29
05 Ball joint, left 1 32106778437 $82.78
Required for repair
-- Clamping bolt M10X1X22-10.9 1 32106765080 $3.27
-- Hex nut wiht flange M12X1,5-10-ZNS3 1 37106789678 $0.75
06 Right tie rod 1 32106778548 $138.29
07 Ball joint, right 1 32106778438 $82.78
Required for repair
-- Clamping bolt M10X1X22-10.9 1 32106765080 $3.27
-- Hex nut wiht flange M12X1,5-10-ZNS3 1 37106789678 $0.75
08 Clamping bolt M10X1X22-10.9 2 32106765080 $3.27
09 Hex nut wiht flange M12X1,5-10-ZNS3 2 37106789678 $0.75
