MINI Coupé R58 Cooper S Pedal assembly

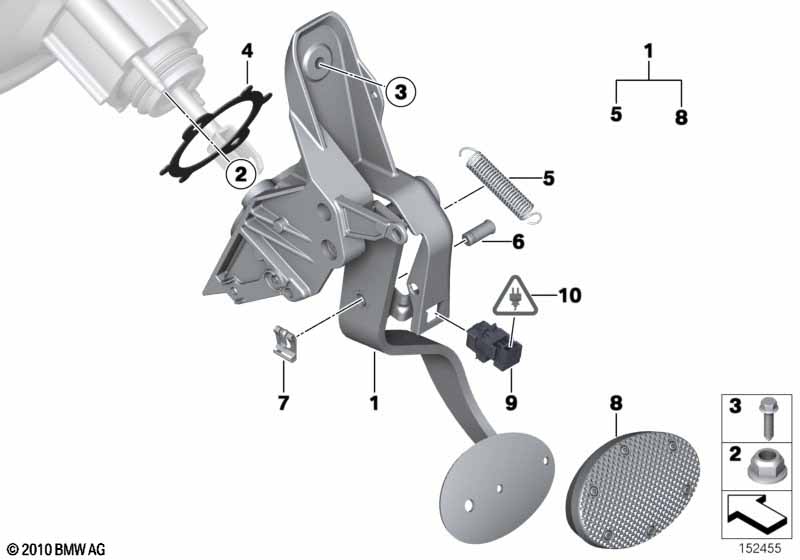

Pedal assembly
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Automatic transmission

S205A=Yes
without pedal cover
01 Complete pedal assembly 1 35106795833
No further intervention permitted
02 Self-locking collar nut M8-10 ZNS3 2 07119905374
03 Hex bolt M8X36-8.8-ZNS3 1 32301094716 $0.70
04 Gasket 1 34336770915 $4.79
05 Return spring 1 35216772408 $1.93
06 Pin 1 34336772409 $0.85
07 Fuse B10-ZNS3 1 07129904567 $0.40
08 Rubber pad with stainless steel inlay 1 12/2013 35216765829 $24.93 ENDED
08 Rubber pad with stainless steel inlay 1 35006860690
09 Stop light switch 1 61316967601 $32.07
Notes
  • ENDED = the part has been discontinued (no longer available).
