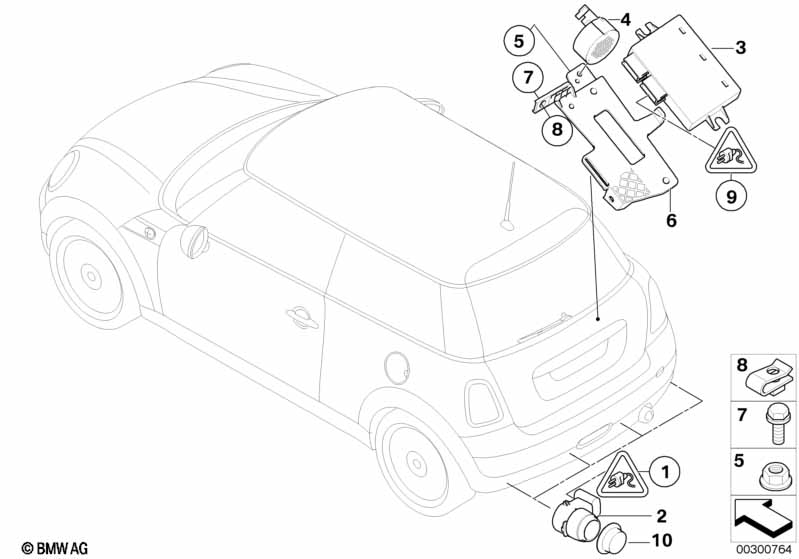

MINI Coupé R58 Cooper S Park Distance Control (PDC)

Park Distance Control (PDC)
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i IMPORTANT NOTICE!
The replacement part concept for the
ultrasonic converter has been revised!
For important information refer to
product information in the ASAP
'New replacement concept for painted
Park Distance Control (PDC)
ultrasonic converter'
01 Socket housing 3 POL. 1 61136934315 $2.12
only in conjunction with
-- Contact bushing MLK 1.2 strand sealing 0,35-0,5MM² AG 3 61138722290
-- Single conductor seal 1 12527503411 $0.18
02 Ultrasonic sensor, black 4 03/2009 66209196705 $129.88
only in conjunction with
-- Decoupling ring PDC torque converter 4 03/2009 66206923000 $1.05
For vehicles with
Aerodynamics package

S7ARA=Yes
02 Ultrasonic sensor, color code 4 66202180146
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
Important notice:
Control number for Individual
and unlisted colors.
For vehicles with
Aerodynamics package
and
interchange-yellow

S7ARA=Yes

YA95=Yes
02 Ultrasonic sensor, Interchange Yellow YA95 4 66203453963 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
hot-chocolate metallic

S7ARA=Yes

WA88=Yes
02 Ultrasonic sensor, Hot Chocolate WA88 4 66203453542 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
british-racing-green metallic

S7ARA=Yes

WA67=Yes
02 Ultrasonic sensor, British-Racing Green WA67 4 66203451522 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
lightning-blue metallic

S7ARA=Yes

WA63=Yes
02 Ultrasonic sensor, Lightning Blue WA63 4 66203451521 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
british-racing-green metallic

S7ARA=Yes

WB22=Yes
02 Ultrasonic sensor, British-Racing Green WB22 4 66207274059 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
white-silver metallic

S7ARA=Yes

WA62=Yes
02 Ultrasonic sensor, Withe Silver WA62 4 66207245491 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
midnight-black metallic

S7ARA=Yes

WA94=Yes
02 Ultrasonic sensor, Midnight Black WA94 4 66207218182
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
horizon-blue metallic

S7ARA=Yes

WA93=Yes
02 Ultrasonic sensor, Horizon Blue WA93 4 66207218181 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
pure-silver

S7ARA=Yes

M900=Yes
02 Ultrasonic sensor, Pure Silver M900 4 66203451515
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
dark-silver

S7ARA=Yes

M871=Yes
02 Ultrasonic sensor, Dark Silver M871 4 66203451514 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
nightfire-red

S7ARA=Yes

M857=Yes
02 Ultrasonic sensor, Nightfire Red M857 4 66203451513 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
rubin-metallic black

S7ARA=Yes

WS23=Yes
02 Ultrasonic sensor RUBINSCHWARZ 4 66202241429 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
sparkling-silver metallic

S7ARA=Yes

WA60=Yes
02 Ultrasonic sensor, Sparkling Silver WA60 4 66203451520 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
laser-blue metallic

S7ARA=Yes

WA59=Yes
02 Ultrasonic sensor, Laser Blue WA59 4 66203451519 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
astro-black metallic

S7ARA=Yes

WA25=Yes
02 Ultrasonic sensor, Astro Black WA25 4 66203451518
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
reef-blue metallic

S7ARA=Yes

WB30=Yes
02 Ultrasonic sensor, Reef Blue WB30 4 66207305446 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
kite-blue metallic

S7ARA=Yes

WB48=Yes
02 Ultrasonic sensor, Blue WB48 4 66207350927
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
iced-chocolate metallic

S7ARA=Yes

WB49=Yes
02 Ultrasonic sensor, Iced Chocolate WB49 4 66207350928
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
azurit-metallic black

S7ARA=Yes

WS34=Yes
02 Ultrasonic sensor AZURITSCHWARZ 4 66202241431 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
velvet-silver metallic

S7ARA=Yes

WB31=Yes
02 Ultrasonic sensor, Velvet Silver WB31 4 66203456717 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
MINI Yours highclass-grey

S7ARA=Yes

WB43=Yes
02 Ultrasonic sensor, Highclass Gray WB43 4 66207304083 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
laguna-green metallic

S7ARA=Yes

WB46=Yes
02 Ultrasonic sensor, Laguna Green WB46 4 66207304084 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
chili-red

S7ARA=Yes

U851=Yes
02 Ultrasonic sensor, Chili Red U851 4 66203451517 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
pepper-white

S7ARA=Yes

U850=Yes
02 Ultrasonic sensor, Pepper White U850 4 66203451516 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
spice-orange metallic

S7ARA=Yes

WB23=Yes
02 Ultrasonic sensor, Spice Orange WB23 4 66207274061 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
eclipse-grey metallic

S7ARA=Yes

WB24=Yes
02 Ultrasonic sensor, Eclipse Grey WB24 4 66207274060 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
ice-blue

S7ARA=Yes

YB28=Yes
02 Ultrasonic sensor, Ice Blue YB28 4 66207274062 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
oxygen-blue uni

S7ARA=Yes

YA74=Yes
02 Ultrasonic sensor, Oxygen Blue YA74 4 66203451524 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
For vehicles with
Aerodynamics package
and
mellow-yellow

S7ARA=Yes

YA58=Yes
02 Ultrasonic sensor, Mellow Yellow YA58 4 66203451523 +core
only in conjunction with
-- Decoupling ring PDC torque converter 4 66206923000 $1.05
03 Control unit PDC 1 66209252640
09 Socket housing 12 POL. 1 61138364664 $0.63
only in conjunction with
-- Contact bushing MQS ELA with cable 0,5-0,75 MM² AG X 61130056384
-- Contact bushing MQS ELA with cable 0,35-0,5 MM² AG X 61130056961
09 Universal cover cap, uncoded 18 POL. 1 61138364662 $2.30
10 Decoupling ring PDC torque converter 4 66206923000 $1.05
Notes
  • +core = plus core charge (possibility of a return of the old part)
