5' F07 GT LCI 528i Activated Charcoal Filter/FUEL VENTILAT

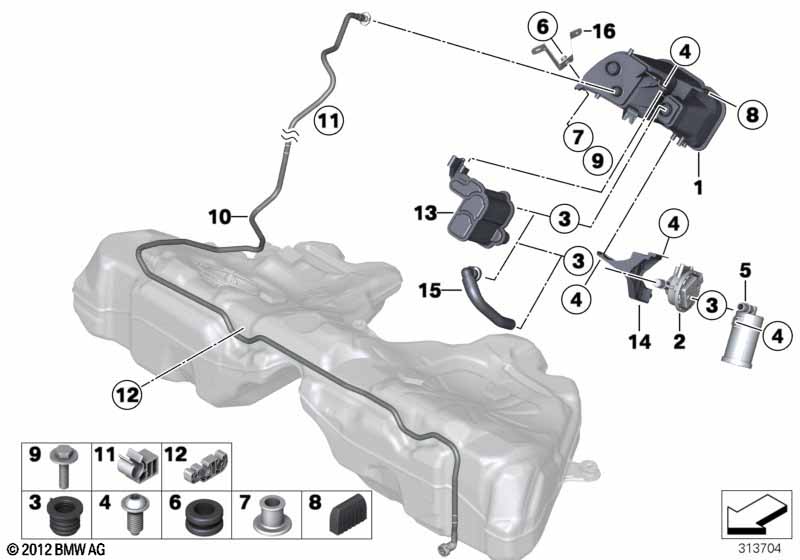

Activated Charcoal Filter/FUEL VENTILAT
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
National version Korea

L802A=Yes
01 Activated Charcoal Filter 1 16137245541
02 Pressure switch, leak diagnosis module 1 16137448091
only in conjunction with
-- Dust filter 1 16137446754
03 Sealing grommet 2 16131184308 $2.45
04 screw for plastic TS5X12-ZNS3 4 07147194471 $0.34
05 Dust filter 1 16132578720
06 Rubber grommet 2 16111182454 $0.93
07 Spacer sleeve 2 16117195118
08 Rubber element 1 16136759296
09 Hex bolt with washer M6X25-U2 2 12/2006 07119905871 $0.59
10 Scavenging line rear 1 16137053996
11 Pipe clip D14 4 16126766397 $1.05
12 Wiring clip, triple 2 16127199665
15 Support 1 16137331123
