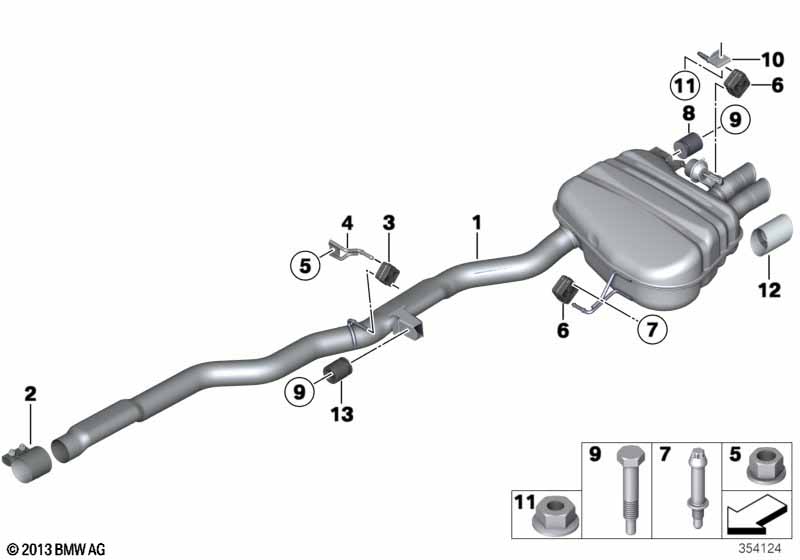

5' F07 GT LCI 528i Exhaust system, rear

Exhaust system, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear muffler with exhaust flap 1 18307646978
02 Clamping bush D=70MM 1 18307560780 $60.54
03 Rubber Ring 1 18207585359
04 Bracket for rear silencer, left 1 18207585348
05 Hex nut M12X1,5ZNNIV SI 1 07129904866 $1.85
06 Rubber Ring 2 03/2014 18207585358
06 Rubber Ring 2 03/2014 18207585359
07 Torx screw with collar M8X55 1 18307591467
08 Vibration absorber 35 HZ 1 18307811444
09 Collar screw M8X70 1 03/2014 18407540023 $4.07
09 Collar screw M8X70 2 03/2014 18407540023 $4.07
10 Bracket, resonator, rear left 1 18307629933
11 Collar nut M8-8-SC-ZNNIV 1 07119906089 $0.32
12 Tailpipe tip, chrome 2 18307649488
For vehicles with
Modern Line

P7S1A=Yes
12 Tailpipe end piece, alu-look 2 07/2014 18308605519
For vehicles with
M Sports package

P337A=Yes
12 Tailpipe tip, black chrome 2 18307649489
13 Vibration absorber 43HZ 1 18308624195
