5' F07 GT LCI 528i ACC-Sensor

ACC-Sensor

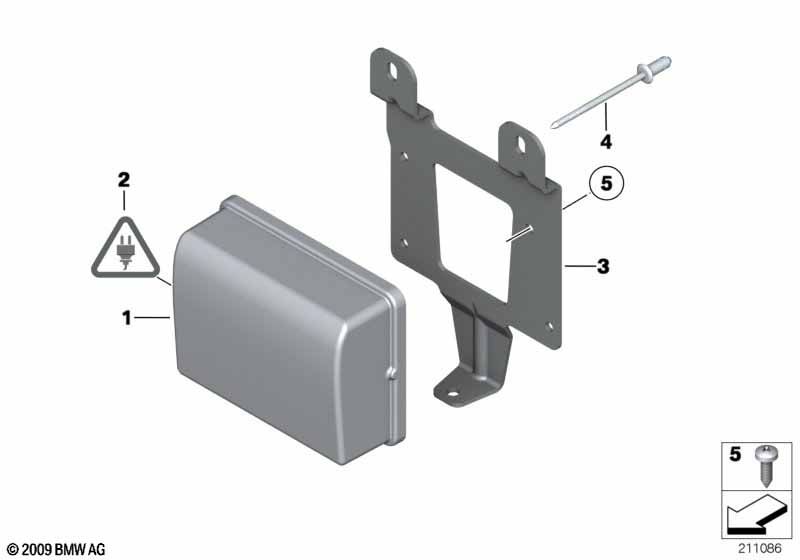

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Driving Assistant Plus
or
Active cruise control+Stop&Go function

S5ATA=Yes

S5DFA=Yes
01 ACC-Sensor 1 07/2013 11/2014 66316869000 ENDED
01 ACC-Sensor 1 07/2013 07/2015 66316874817 ENDED
01 ACC-Sensor 1 07/2013 03/2016 66316876327 ENDED
01 ACC-Sensor 1 07/2013 08/2016 66316877096 ENDED
01 ACC-Sensor 1 07/2013 66316885585
02 Universal socket housing uncoded 8 POL. 1 61138364624 $4.07
only in conjunction with
-- Terminal socket MQS ELA 0,5-0,75 MM² AG 5 61136931880
-- Single conductor seal 0.5-1.0MM² GN 5 61138366245 $0.17
-- Dummy grommet MQS Ø=3,6 3 61138366249 $0.20
For vehicles with
M Aerodynamics package

S715A=Yes
03 Bracket f ACC M 1 66318051222
For vehicles with
M Aerodynamics package

S715A=No
03 Bracket f ACC 1 66316782152
04 Blind rivet D = 4MM 3 66316777308 $0.33
05 Oval-head machine screw, self-threading M5X10-ZNNID SW 4 07146777838 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
