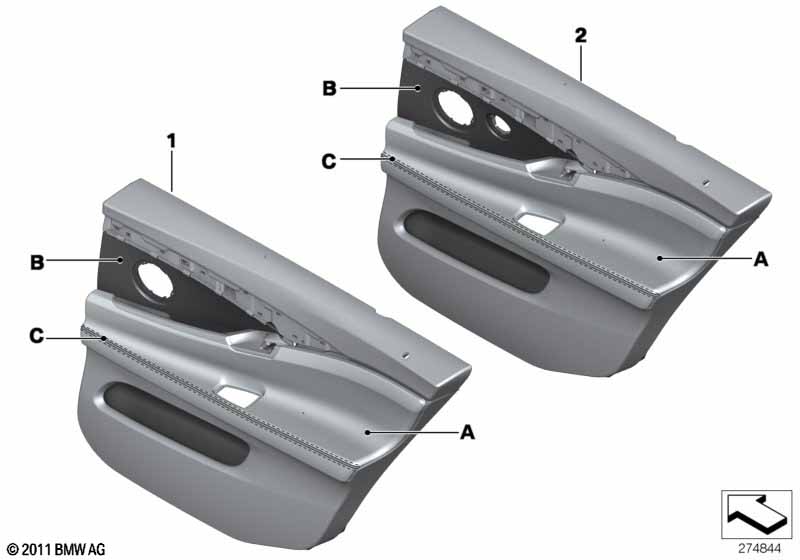

5' F07 GT LCI 528i Individual door inset, rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) part number, leather - (B) black leather - (C) Color ID thread --------------------------- For vehicles with special trim (without colour statement) or Indi. leather expanded/"platin/black" or Indi. leather, extended/amaro-braun |
Z1XX=Yes ZAC8=Yes ZAP5=Yes |
|||||||
| 01 | Door trim panel, rear, left | INDIVIDUAL | 1 | 09/2011 | 51427982129 | NoS | |||
| 01 | Door trim panel, rear, right | INDIVIDUAL | 1 | 09/2011 | 51427982130 | NoS | |||
| For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
||||||||
| 01 | Door trim panel, rear, left | INDIVIDUAL | 1 | 09/2011 | 51427982305 | NoS | |||
| 01 | Door trim panel, rear, right | INDIVIDUAL | 1 | 09/2011 | 51427982306 | NoS | |||
| For vehicles with HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system or Bang&Olufsen High End Surround Sound |
S676A=Yes S677A=Yes S688A=Yes S6F2A=Yes |
||||||||
| 02 | Door trim panel, rear, left | INDIVIDUAL | 1 | 09/2011 | 51427982137 | NoS | |||
| 02 | Door trim panel, rear, right | INDIVIDUAL | 1 | 09/2011 | 51427982138 | NoS | |||
| For vehicles with Roller sun vizor, rear lateral and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S416A=Yes S676A=Yes S677A=No S688A=No S6F2A=No |
||||||||
| 02 | Door trim panel, rear, left | INDIVIDUAL | 1 | 09/2011 | 51427982307 | ||||
| 02 | Door trim panel, rear, right | INDIVIDUAL | 1 | 09/2011 | 51427982308 | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S416A=Yes S676A=No S677A=Yes S688A=No S6F2A=No |
||||||||
| 02 | Door trim panel, rear, left | INDIVIDUAL | 1 | 09/2011 | 51427982307 | ||||
| 02 | Door trim panel, rear, right | INDIVIDUAL | 1 | 09/2011 | 51427982308 | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S416A=Yes S676A=No S677A=No S688A=Yes S6F2A=No |
||||||||
| 02 | Door trim panel, rear, left | INDIVIDUAL | 1 | 09/2011 | 51427982307 | ||||
| 02 | Door trim panel, rear, right | INDIVIDUAL | 1 | 09/2011 | 51427982308 | ||||
| For vehicles with Roller sun vizor, rear lateral and HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S416A=Yes S676A=No S677A=No S688A=No S6F2A=Yes |
||||||||
| 02 | Door trim panel, rear, left | INDIVIDUAL | 1 | 09/2011 | 51427982307 | NoS | |||
| 02 | Door trim panel, rear, right | INDIVIDUAL | 1 | 09/2011 | 51427982308 | NoS | |||
Notes
- NoS = No Stock (Part, central, not in stock.)
