1' E81 116i 1.6 Lubrication system/Oil pump

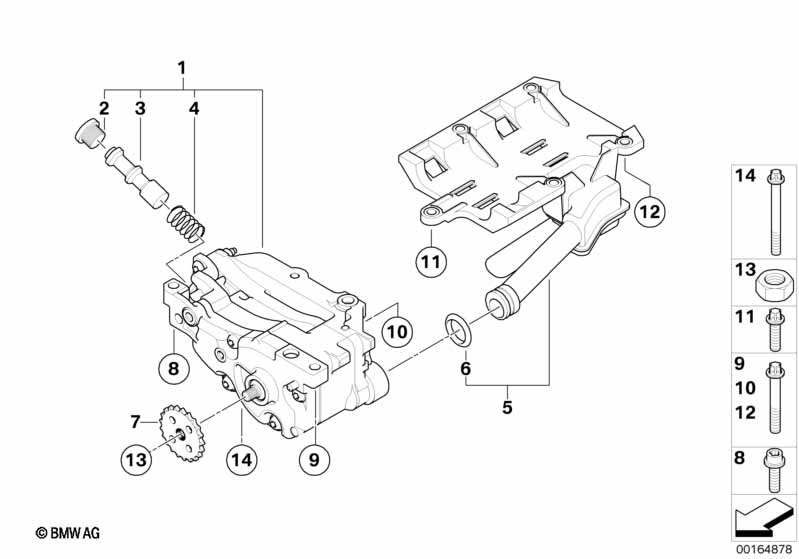

Lubrication system/Oil pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil pump 1 11417594311
02 Screw plug 1 11417507650
03 Control valve 1 11417507648
04 Coil spring 1 11417507755
05 Suction pipe 1 11417521173
06 O-ring 22,2X3,15 1 11417507756 $1.83
07 Sprocket 1 11317507552
08 Torx bolt M8X100-8.8 1 11277505696
09 Torx bolt M8X55 1 11277505697
10 Torx bolt M8X55 1 11417526413
11 Torx bolt M8X21 1 11137525742
12 Torx bolt M8X50 4 11137525743
13 Hex nut M10X1-LH 1 11417506378
