1' E82 135i Rear brake / brake pad / wear sensor

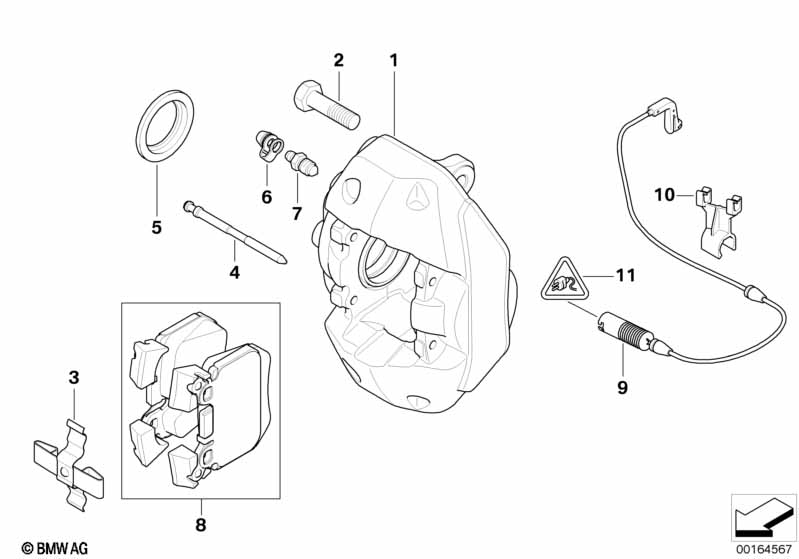

Rear brake / brake pad / wear sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Caliper housing left 1 34206860145
01 Caliper housing right 1 34206860146
01 Caliper housing left 1 34206785237 $443.36 +core
01 Caliper housing right 1 34206785238 $443.36 +core
02 Collar screw, micro-encapsulated M10X26,5 4 34203414763 $1.32
03 Expansion spring 2 34216780513 $9.47
04 Guide pin 2 34216780514 $10.13
05 Repair set brake caliper 2 34216780515 $5.43
06 Dust cap 2 34116780508 $1.95
07 Ventilation valve 2 34116780509 $3.12
08 Repair kit, brake pads asbestos-free 1 34216791421
The following parts are also
mandatory:
- brake pad wear sensor
- brake pad paste
Also recommended for vehicles older than
48 months:
- replace expanding spring and guide
pin
see repair instruction!
09 Brake pad wear sensor 1 03/2010 34356789445 $25.20
10 Clip for brake pad wear sensor 1 34356779356 $0.77
Notes
  • +core = plus core charge (possibility of a return of the old part)
