1' E87 LCI 118d Carrier instrument panel

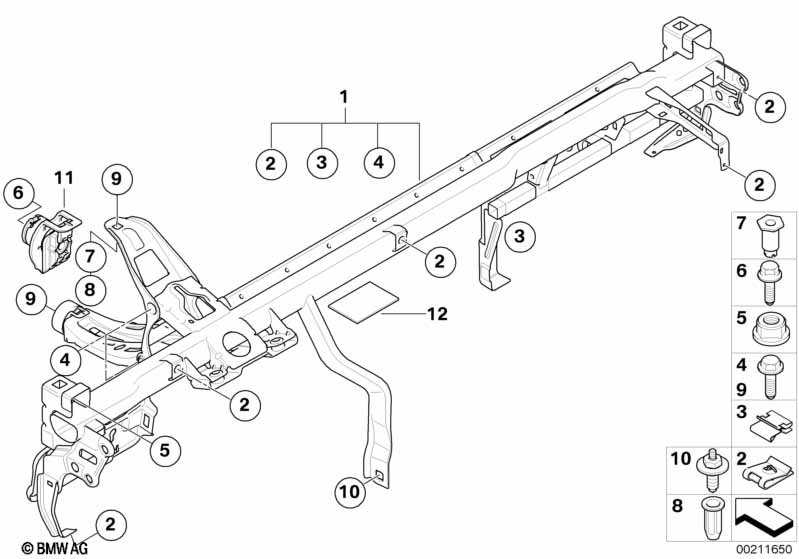

Carrier instrument panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting tube 1 51719115031
02 Body nut ST4.2 ZNS3 7 51718261093 $0.32
03 Clamp 1 07147654321 $0.17
04 Combination Allen bolt M8X16 4 41617068713 $1.02
05 Hex nut with plate M8 4 07149200945
06 Hexagon screw with flange 1 07147135316 $1.64
07 Compensator bush 1 07147135247 $4.36
08 Blind rivet nut, flat headed M12X1,5 LH 1 07147135246 $4.60
09 Hex bolt with washer M8X60 1 07147135317 $1.53
10 Spacer bolt 1 07146953020 $1.16
11 Compensation element for front wall 1 51717149480 $7.96
12 Felt strip 100X70X2 X 07149199575 $2.72 ENDED
12 Set felt strip self-adhesive X 51452353024
Notes
  • ENDED = the part has been discontinued (no longer available).
