1' E87 LCI 120d Exhaust manifold-AGR

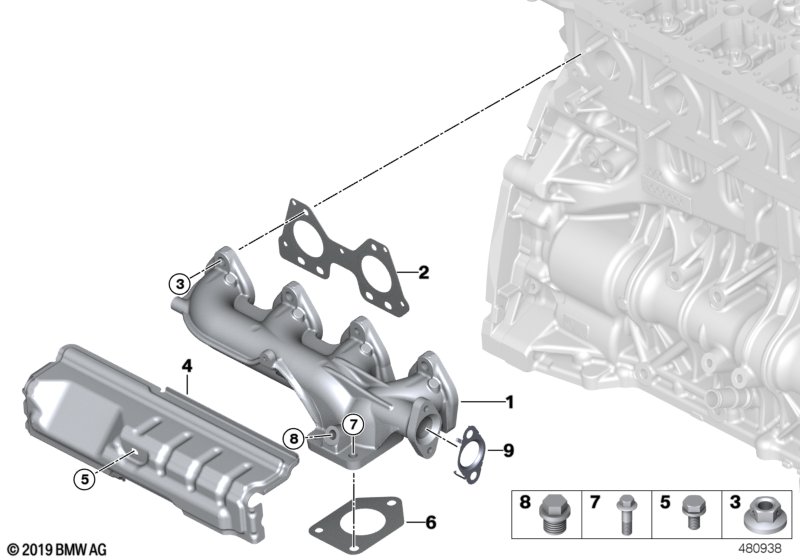

Exhaust manifold-AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exhaust manifold 1 09/2008 11627810182 +core
only in conjunction with
-- Screw plug 1 09/2008 13627810310
01 Exhaust manifold 1 09/2008 11627810182 +core
only in conjunction with
-- Screw plug 1 09/2008 13627810310
For vehicles with
EU3 exhaust emissions standard

S169A=Yes
01 Exhaust manifold 1 09/2008 11627810182 +core
only in conjunction with
-- Screw plug 1 09/2008 13627810310
02 Gasket Steel 2 02/2013 11627811221 $11.81 ENDED
02 Gasket Steel 2 11628509783
03 Flange nut M7 8 09/2017 11627800122 ENDED
03 Flange nut M7 8 11628597827
04 Heat protection shield asbestofree 1 11628509117
05 Hex bolt with washer M6X12-U1-8.8 2 07119904517 $0.36
06 Gasket Asbestos Free 1 11657800596 $8.27
Required for repair
-- Screw M8X20 3 11657801771
07 Screw M8X20 3 11657801771
08 Screw plug 1 13627810310
only applies to
-- Exhaust manifold X 11627810182 +core
09 Gasket Steel 1 11628576287
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
