1' E87 LCI 116d Trunk floor / Trunk sill / Dividing net

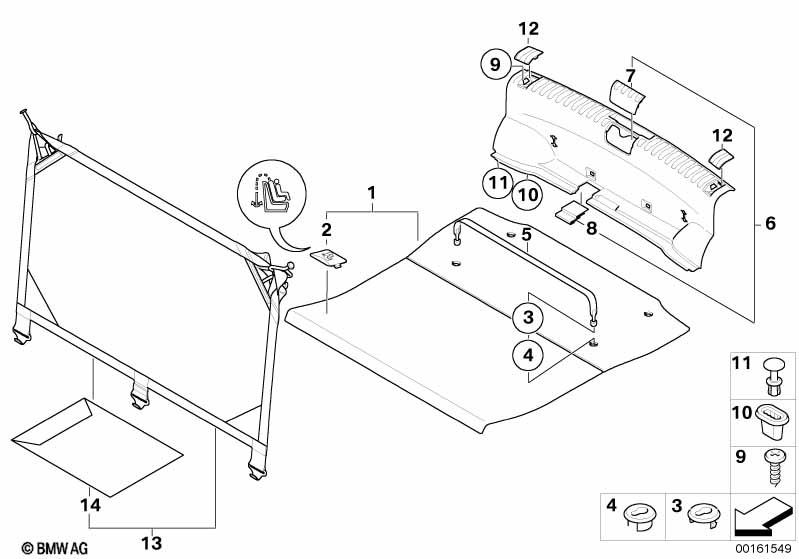

Trunk floor / Trunk sill / Dividing net
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Floor carpet, luggage compartment 1 51479138567 +core
02 Cover, child restraint system 2 51479140332
03 Mount, retaining strap upper section ANTHRAZIT 4 51478146943 $0.77
04 Mount, retaining strap lower section ANTHRAZIT 4 51478146941 $0.75
05 Band clamp, black L=590 MM 2 51478136450 $6.73
06 Loading sill cover 1 51477123335
07 Cover, catch bracket 1 51477123336
08 Cover, threaded fastener f roll bar 1 51477123337
09 Screw NS-TS5X16-ZNFE 2 07129903266 $0.20
10 Grommet 12X6,3 2 51131840154 $0.47
11 Expanding rivet SCHWARZ 2 51498166702 $0.37
12 Cover,threaded fastener f trunk sill lft 1 51477123333
12 Cover,threaded fastener f trunk sill rg. 1 51477123334
For vehicles with
Trunk room net

S413A=Yes
13 Trunk room net with bag 1 51477123951
14 Bag, trunk room net 1 51477123298
Notes
  • +core = plus core charge (possibility of a return of the old part)
