1' E87 LCI 116d Underhood shield

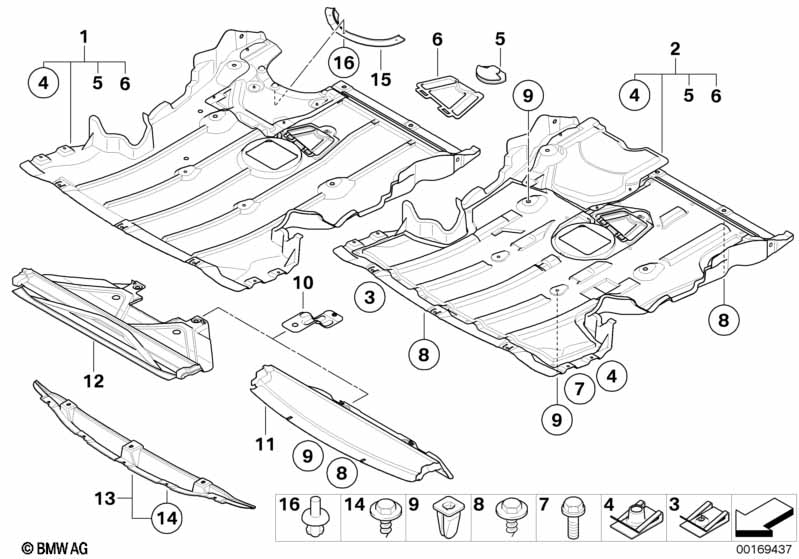

Underhood shield
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Skid plate national versions

S8SDA=Yes
02 Engine comp. shield., underride prot. 1 51757161569 +core
03 C-clip nut, self-locking ST 4.8 -ZNS3 2 07147154447 $0.27
04 C-clip nut M6-ZNS3 3 51127070202 $1.00
05 Rotary clip 1 51757163900
06 Cover, engine compartment screening 1 51757163902
07 Hex bolt with washer M6X20 3 07147199289 $1.07
08 Hex head screw with washer ST4,8X16MM 16 07147129160 $0.36
09 Expanding nut L=15MM, DMAX=12 8 07146976114 $0.09
10 Engine compartment protection backet 2 51757128501 $6.74
11 Radiator seal 1 51717128502 $27.68
For vehicles with
M Aerodynamics package

S715A=Yes
13 Interm. piece engine compartment shield. 1 51757906821
14 Hex head screw ST4,8X16-ZNS3 5 07119901299 $0.25
Notes
  • +core = plus core charge (possibility of a return of the old part)
