1' E81 123d Vacuum control-AGR

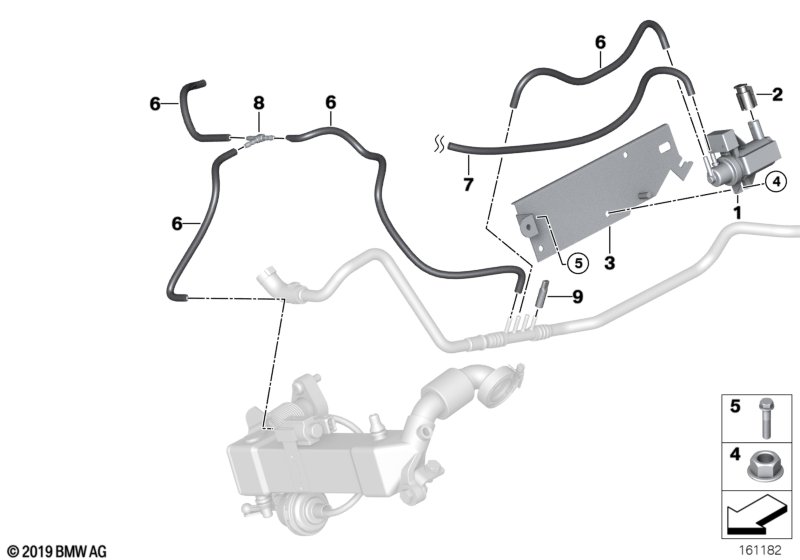

Vacuum control-AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pressure converter 1 03/2009 11747805391
02 Socket housing 1 03/2009 12527507529 $2.53
only in conjunction with
-- Contact bushing MLK 1.2 strand sealing 0,35-0,5MM² AG 2 03/2009 61138722290
-- Single conductor seal 2 03/2009 12527503411 $0.18
03 Holder 1 03/2009 11747797650
04 Hex nut 2 03/2009 11628508395 ENDED
05 Hex bolt with washer M6X12-U1-8.8 2 03/2009 07119904517 $0.36
06 Vacuum hose black 3,5X2,0 X 03/2009 11747797129 $17.14
07 Vacuum hose blue 3,5X2,0 X 03/2009 11657796879 $16.43
For vehicles with
Automatic transmission

S205A=No
08 T-Connector 1 03/2009 11721439973 $1.07
09 Cap 1 03/2009 11667803829
Notes
  • ENDED = the part has been discontinued (no longer available).
