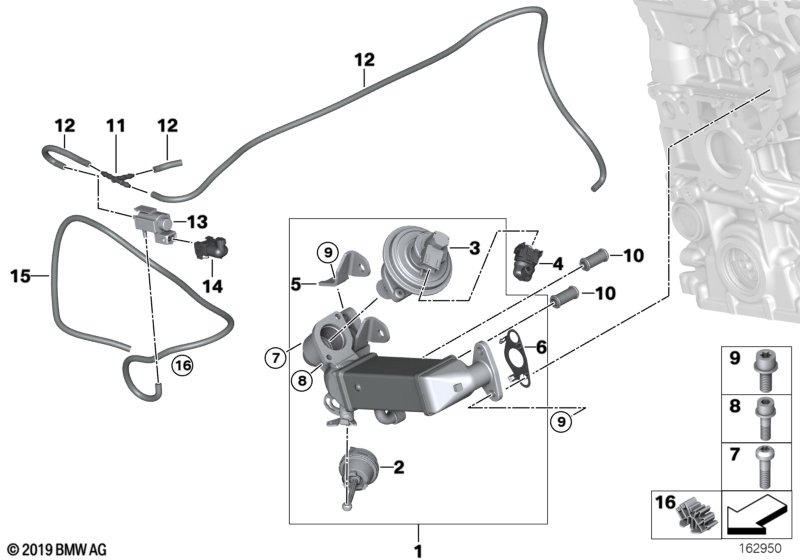

1' E81 123d pollutant reduction cooling

pollutant reduction cooling
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Automatic transmission

S205A=No
01 exhaust cooler 1 03/2009 11717806051
02 Vacumm box 1 03/2009 11717803615
03 EGR-valve 1 03/2009 11717808171
05 Holder 1 03/2009 11717803614
06 Gasket Steel 1 03/2009 11717795465
07 Torx bolt M8X28 2 03/2009 11712249909 $5.12
08 Torx-bolt with washer M6X20-U1-8.8 2 03/2009 07129905516 $0.96
09 Torx-bolt with washer M8X20 ZNNIV SI 4 03/2009 07129905423 $0.55
10 Pipe union 2 03/2009 11717799853
11 T-Connector 1 03/2009 11721439973 $1.07
12 Vacuum hose black 3,5X2,0 X 03/2009 11747797129 $17.14
13 Electr.valve 1 03/2009 11747810831 $46.70
15 Vacuum hose red 3,5X2,0 X 03/2009 11657796857 $16.43
16 Hose clamp 1 03/2009 11747807134 $1.00
