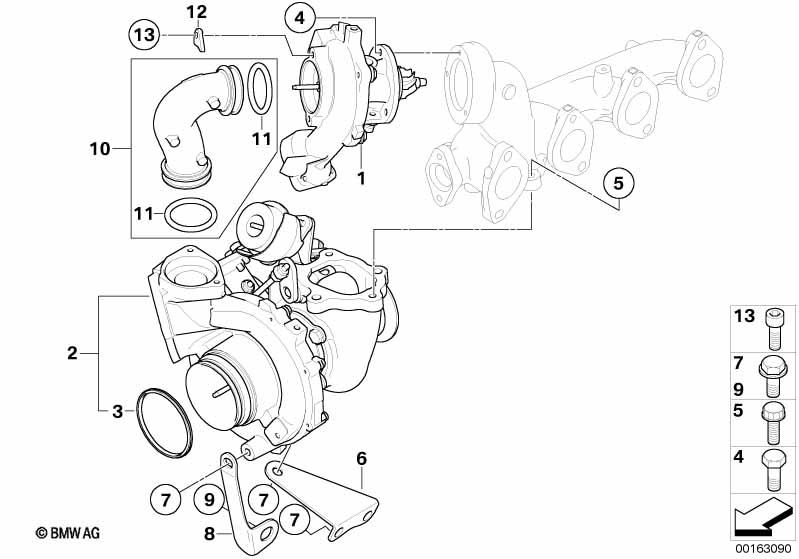

1' E81 123d Turbo charger

Turbo charger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please always observe repair
instructions 11 65 020!
01 AT-turbo charger 1 11657804637
only in conjunction with
-- Gasket Asbestos Free 2 11422246091 $1.19
-- Return pipe 1 11427803608
02 AT-turbo charger 1 11657804638
only in conjunction with
-- Gasket Asbestos Free 2 11422246091 $1.19
-- Return pipe 1 11427803609
03 Preformed seal 1 11617796622 $6.65
04 Hex bolt M6X12 3 11657804866
05 Screw M8X22 5 11657804756
06 Support 1 11657797784
07 Hex bolt with washer M8X16 4 07119905528 $0.62
08 Support 1 11657800606
09 Hex bolt M12X20 1 07119904488 $3.02
10 Connection pipe 1 11657804639
11 O-ring 40X4,5 2 11657804868
12 Mounting panel 4 11657794574 $17.80
13 ISA screw M6X16-8.8-ZNNIV 4 07129905536 $0.64
