1' E81 123d Intake manifold-supercharg.air duct/AGR

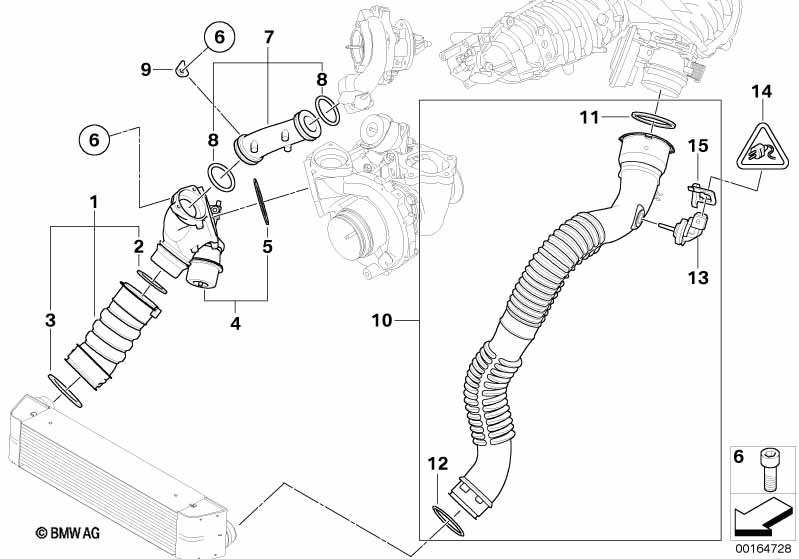

Intake manifold-supercharg.air duct/AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charge air line 1 11617802754 +core
02 Preformed seal 1 11618506782
03 Preformed seal 1 11617791470 $8.20
04 Connection pipe 1 11657804641
05 O-ring 70X2 1 11657804867
06 ISA screw M6X16-8.8-ZNNIV 7 07129905536 $0.64
07 Connection pipe 1 11657804640
08 O-ring 40X4,5 2 11657804868
09 Mounting panel 4 11657794574 $17.80
10 Charge air line 1 11617797481
11 Preformed seal 1 09/2013 11618506786 $8.69 ENDED
11 Preformed seal 1 13718596850
12 Preformed seal 1 11617791235
13 Intake air temperature sensor 1 13627792203 $25.98
14 Plug housing 2 POL. 1 12521732460 $6.38
only in conjunction with
-- Blade terminal spring contact MDK4 2.8 1-2,5 MM²/SN 2 12521737773 $0.32
15 Twist protection 1 11617807096 $0.58
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
