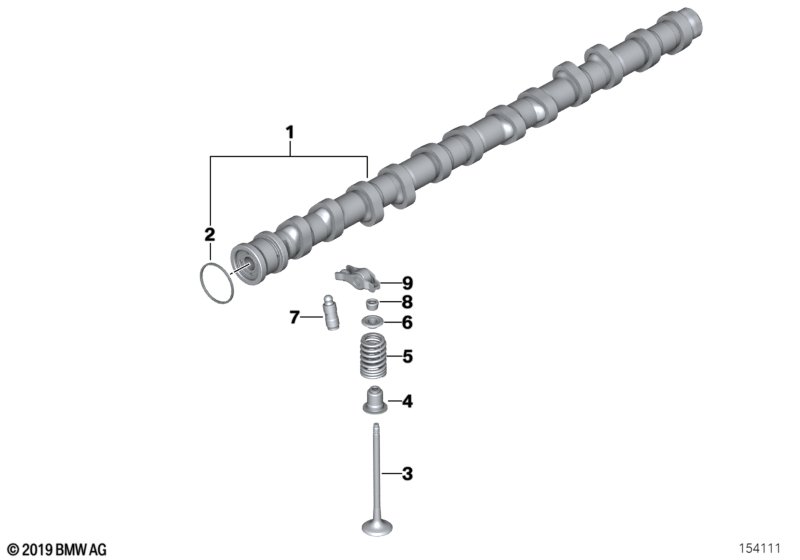

1' E88 135i Valve timing gear, camshaft, inlet
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Inlet camshaft | 1 | 11317584803 | $585.21 | +core | ||||
| 02 | Rectangring | 2 | 11317587757 | $5.62 | |||||
| 03 | Intake valve | 31,4/4,968MM | 12 | 11347553775 | $27.75 | ||||
| 04 | Repair kit valve seal ring | 1 | 11340034068 | $82.00 | |||||
| 05 | Valve spring | 12 | 11347563459 | ||||||
| 06 | Upper spring plate | 12 | 11347539917 | $3.77 | |||||
| 07 | Alignment element | 12 | 11337548690 | $21.42 | |||||
| 08 | Valve collet | D=5 | 24 | 11341438142 | $1.08 | ||||
| 09 | Roller drag lever | 12 | 11337559797 | $33.04 |
Notes
- +core = plus core charge (possibility of a return of the old part)
