1' E82 123d Door cable harnesses

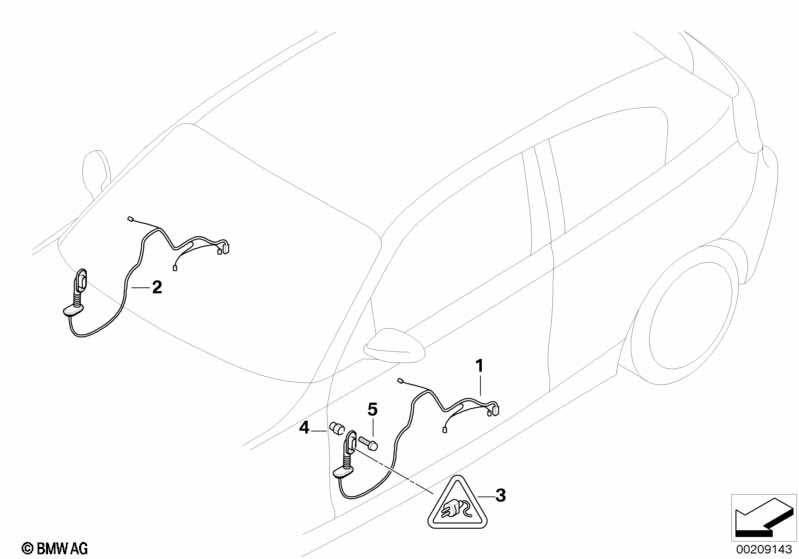

Door cable harnesses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wiring set, door, driver 1 61129260903
For vehicles with
Fold-in outside mirror
and
Interior/outside mirror with auto dip
and
Seat adjuster, electric, with memory

S313A=No

S430A=No

S459A=No
02 Wiring set, door, co-driver 1 61129260915
For vehicles with
Fold-in outside mirror
or
Interior/outside mirror with auto dip
or
Seat adjuster, electric, with memory

S313A=Yes

S430A=Yes

S459A=Yes
02 Wiring set, door, co-driver 1 61129260918
on main wiring harness
03 Pin terminal 32 POL. 2 61136925543 $2.55
only in conjunction with
-- Contact pin MQS 0,2-0,35MM²/SN 2 61131383672 $0.42
-- Contact pin MQS 0,5-0,75MM² /SN 2 61131393723 $0.42
-- Covering cap 2 61136925542 $1.12
-- Pin terminal 4 POL. 2 61136925545 $0.98
-- Slider 2 61136925547 $0.68
-- Pin-contact ELO-Power 2,8 x 0,63 0,5-1,0MM² 2 61138364833 $0.77
-- Pin-contact ELO-Power 2,8 x 0,63 1,0-2,5MM² 2 61138364835 $0.72
04 Blind rivet nut, flat headed M5 2 61136954561 $0.63
05 Hex bolt 2 61136954557 $0.79
