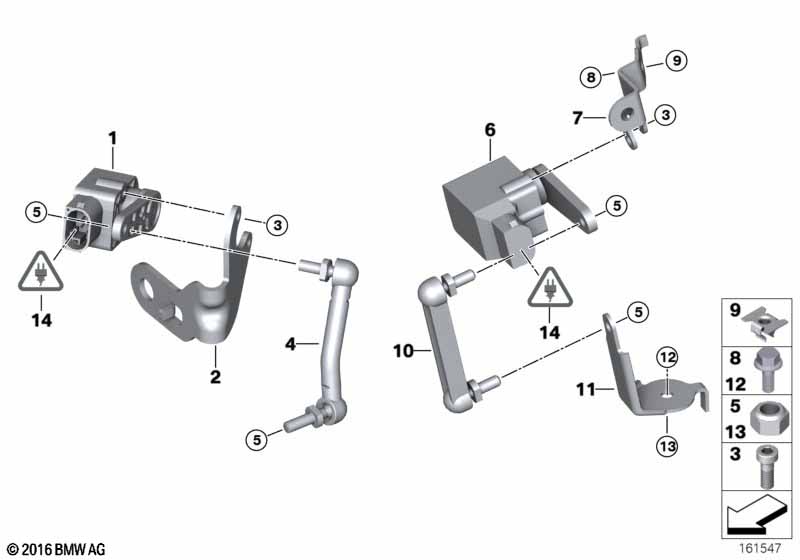

1' E82 M Coupé Headlight vertical aim control sensor

Headlight vertical aim control sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Level sensor 1 37146853753
02 Right ride height sensor bracket 1 37146763734 $2.85
03 Fillister-head screw M5X10-8.8-ZNNIV 4 07119904303 $0.25
04 Regulating rod 1 37142283867 $15.06
05 Hex nut M6-8-ZNNIV SI 4 07129905817
06 Level sensor 1 37146853753
07 Bracket for height sensor, rear 1 37142283614 $3.90
08 Hex bolt M6X16-8.8-ZNS3 1 07119904371 $0.16
09 Prestol-cage M6 ZNS3 1 37146850307
10 Regulating rod 71,5MM 1 37146752797 $6.18
11 Bracket, regulating rod, left 1 37142283617 $5.63
12 Hex bolt M6X30-8.8-ZNS3 1 07119904116 $0.38
13 Self-locking hex nut M6-8-ZNNIV SI 1 07119905949 $0.24
14 Universal socket housing uncoded 6 POL. 2 61138383300 $3.47
only in conjunction with
-- Contact bushing MQS ELA with cable 0,5-0,75 MM² AG X 61130056384
-- Contact bushing MQS ELA with cable 0,35-0,5 MM² AG X 61130056961
