3' E91 LCI 320xd Loudspeaker components for headlining

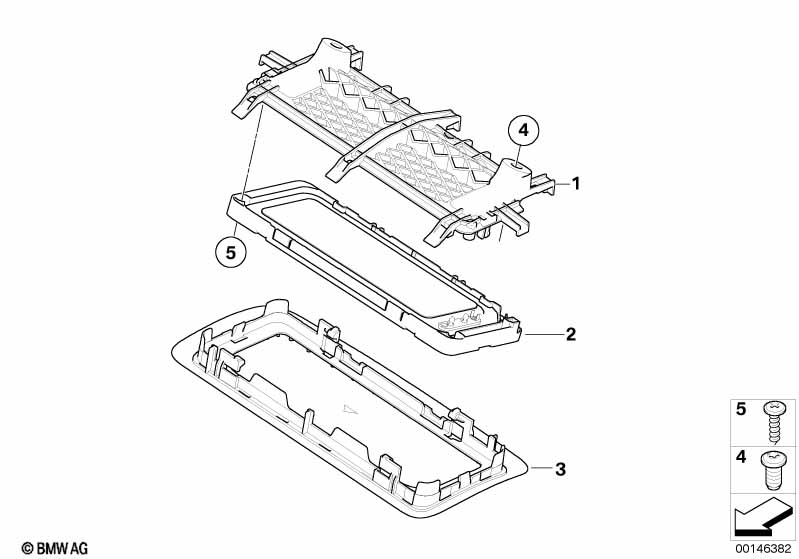

Loudspeaker components for headlining
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system

S402A=No

S677A=Yes

S688A=No

S752A=No
01 Bracket, headlining loudspeaker, left 1 65136951983 $7.03
01 Bracket, headlining loudspeaker, right 1 65136951984 $7.03
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system

S402A=No

S677A=No

S688A=Yes

S752A=No
01 Bracket, headlining loudspeaker, left 1 65136951983 $7.03
01 Bracket, headlining loudspeaker, right 1 65136951984 $7.03
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system

S402A=No

S677A=No

S688A=No

S752A=Yes
01 Bracket, headlining loudspeaker, left 1 65136951983 $7.03
01 Bracket, headlining loudspeaker, right 1 65136951984 $7.03
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system

S402A=Yes

S677A=Yes

S688A=No

S752A=No
01 Bracket, headlining loudspeaker, left 1 65136951985 $7.03
01 Bracket, headlining loudspeaker, right 1 65136951986 $7.03
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system

S402A=Yes

S677A=No

S688A=Yes

S752A=No
01 Bracket, headlining loudspeaker, left 1 65136951985 $7.03
01 Bracket, headlining loudspeaker, right 1 65136951986 $7.03
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system

S402A=Yes

S677A=No

S688A=No

S752A=Yes
01 Bracket, headlining loudspeaker, left 1 65136951985 $7.03
01 Bracket, headlining loudspeaker, right 1 65136951986 $7.03
For vehicles with
HiFi System Professional DSP
or
Harman/Kardon Surround Sound system
or
Individual audio system

S677A=Yes

S688A=Yes

S752A=Yes
02 High and mid-range speaker 2 65139143154 $126.92
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"

S402A=Yes

S677A=Yes

S688A=No

S752A=No

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961307 $42.69
03 Cover f right loudspeaker GRAU 1 65136961308 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"

S402A=Yes

S677A=No

S688A=Yes

S752A=No

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961307 $42.69
03 Cover f right loudspeaker GRAU 1 65136961308 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"

S402A=Yes

S677A=No

S688A=No

S752A=Yes

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961307 $42.69
03 Cover f right loudspeaker GRAU 1 65136961308 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige

S402A=Yes

S677A=Yes

S688A=No

S752A=No

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961305 $42.69
03 Cover f right loudspeaker BEIGE 1 65136961306 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige

S402A=Yes

S677A=No

S688A=Yes

S752A=No

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961305 $42.69
03 Cover f right loudspeaker BEIGE 1 65136961306 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige

S402A=Yes

S677A=No

S688A=No

S752A=Yes

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961305 $42.69
03 Cover f right loudspeaker BEIGE 1 65136961306 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black

S402A=Yes

S677A=Yes

S688A=No

S752A=No

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961309 $42.69
03 Cover f right loudspeaker SCHWARZ 1 65136961310 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black

S402A=Yes

S677A=No

S688A=Yes

S752A=No

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961309 $42.69
03 Cover f right loudspeaker SCHWARZ 1 65136961310 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black

S402A=Yes

S677A=No

S688A=No

S752A=Yes

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961309 $42.69
03 Cover f right loudspeaker SCHWARZ 1 65136961310 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige

S402A=No

S677A=Yes

S688A=No

S752A=No

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961283 $42.69
03 Cover f right loudspeaker BEIGE 1 65136961284 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige

S402A=No

S677A=No

S688A=Yes

S752A=No

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961283 $42.69
03 Cover f right loudspeaker BEIGE 1 65136961284 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige

S402A=No

S677A=No

S688A=No

S752A=Yes

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961283 $42.69
03 Cover f right loudspeaker BEIGE 1 65136961284 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"

S402A=No

S677A=Yes

S688A=No

S752A=No

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961285 $42.69
03 Cover f right loudspeaker GRAU 1 65136961286 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"

S402A=No

S677A=No

S688A=Yes

S752A=No

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961285 $42.69
03 Cover f right loudspeaker GRAU 1 65136961286 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"

S402A=No

S677A=No

S688A=No

S752A=Yes

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961285 $42.69
03 Cover f right loudspeaker GRAU 1 65136961286 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black

S402A=No

S677A=Yes

S688A=No

S752A=No

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961287 $42.69
03 Cover f right loudspeaker SCHWARZ 1 65136961288 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black

S402A=No

S677A=No

S688A=Yes

S752A=No

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961287 $42.69
03 Cover f right loudspeaker SCHWARZ 1 65136961288 $42.69
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black

S402A=No

S677A=No

S688A=No

S752A=Yes

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961287 $42.69
03 Cover f right loudspeaker SCHWARZ 1 65136961288 $42.69
For vehicles with
HiFi System Professional DSP
or
Harman/Kardon Surround Sound system
or
Individual audio system

S677A=Yes

S688A=Yes

S752A=Yes
04 Fillister head screw 4 51417066337 $0.47
05 Screw 4 64111378861 $0.53
