3' E91 LCI 320xd Electric parts airbag

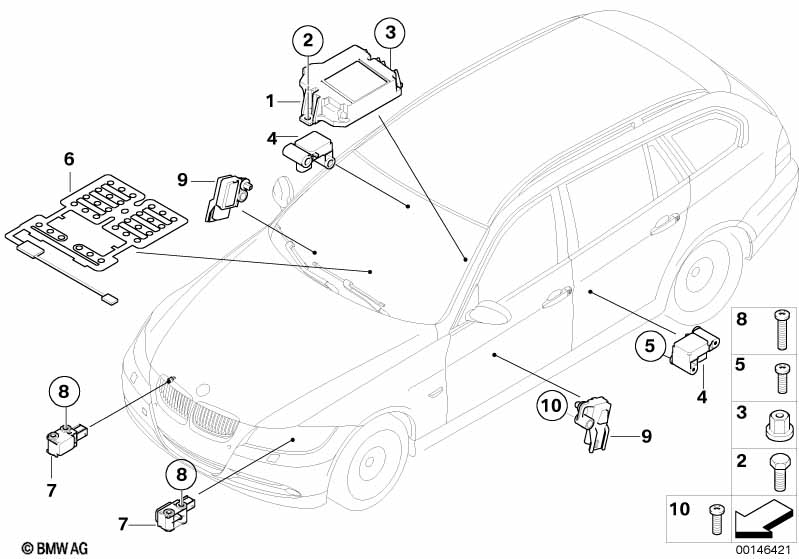

Electric parts airbag
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Sensor mats for USA are included in
seat covers of main group 52.
01 Control unit airbag 1 09/2008 65779166057 $449.88 ENDED
01 Control unit airbag 1 65779184432 $459.08
02 Hex bolt M6X16 1 03/2009 07119905042 $0.27
02 Hex bolt M6X16-8.8-ZNS3 1 07119904371 $0.16
03 Locknut M6 ZNT 2 07146982788 $0.20
04 Accelerating sensor 2 65776911003 $51.75
05 Fillister head screw M6X14 2 07146958688 $0.38
06 Sensor mat f co-driver's seat identif. 1 09/2008 03/2009 65779196259
For vehicles with
Extra package, EU-specific

S230A=Yes
06 Sensor mat f co-driver's seat identif. 1 03/2009 65779196259
For vehicles with
  Seat heating driver/passenger
  and
  Sports seat
and
  alaska-grey
  or
  Cloth/leather combination
  or
  Sensatec

S494A=Yes

S481A=No

AL=Yes

FF=Yes

KA=Yes
06 Sensor mat f co-driver's seat identif. 1 09/2008 03/2009 65779196259
For vehicles with
  Seat heating driver/passenger
  and
  Sports seat
  and
  Extra package, EU-specific
and
  alaska-grey
  or
  Cloth/leather combination
  or
  Sensatec

S494A=Yes

S481A=No

S230A=Yes

AL=Yes

FF=Yes

KA=Yes
06 Sensor mat f co-driver's seat identif. 1 03/2009 65779196259
Notes
  • ENDED = the part has been discontinued (no longer available).
