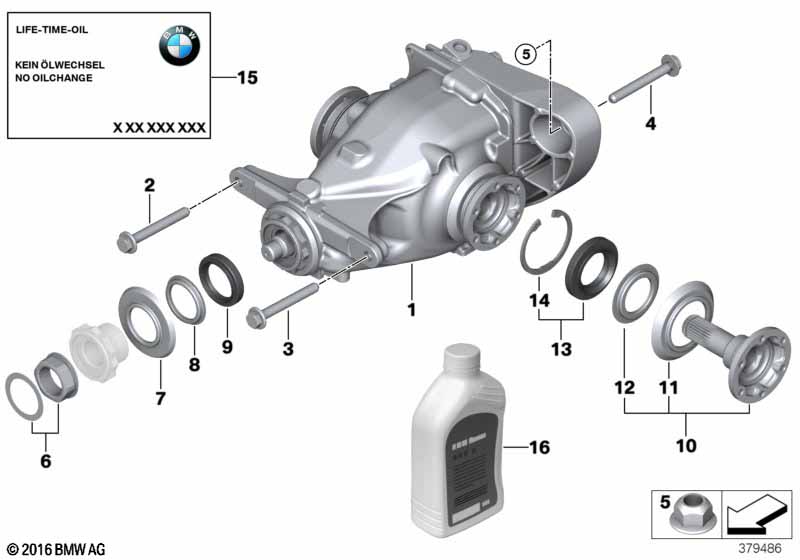

3' E90 335i Differential-drive/output

Differential-drive/output
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. final drive I=3,08 1 07/2015 33107571187 $1487.33 ENDED
Important!
Note Repair Manual
01 Rear-axle-drive I=3,08 1 33107571186 $2489.30
Important!
Note Repair Manual
02 Hex bolt with washer M12X1,5X100 1 33176760343 $2.05
03 Hex bolt with washer M12X1,5X100 1 33176760343 $2.05
04 Nut M14X1,5X110 1 01/2009 33176760342 $3.50
05 Combination nut M14X1,5-10ZNS3 1 33326760380 $2.48
06 Repair kit insert nut M39X1,5X16,5 1 26117567770 $17.52 SI 1 21 06(300)
Important!
Note Repair Manual
07 dustcover plate, large 1 33127518511 $2.11
08 dustcover plate, small 1 33121214064 $0.84
09 Shaft seal 50X78X10/15 1 33107609536
Important!
Note Repair Manual
Only in conjunction with position 6
10 Drive flange output LK=86MM/M10 2 06/2014 33137513941 $99.09
LK = bolt hole
10 Drive flange output LK=86MM/M10 2 33137500874 $105.28
only in conjunction with
-- Shaft seal with lock ring 100X50X10 2 33107505605 $20.09
LK = bolt hole
11 dustcover plate, large 2 33137500876 $1.97
12 dustcover plate, small 2 33137500877 $1.54
13 Shaft seal with lock ring 100X50X10 2 33107505605 $20.09
14 Lock Ring D=26,7 2 33131213997 $0.29
15 Stick-on label DE, EN 1 01399791197 $4.25
16 BMW Synthetik OSP 1L X 07/2011 83222365987
Filling quantity, see Additional
Information
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
