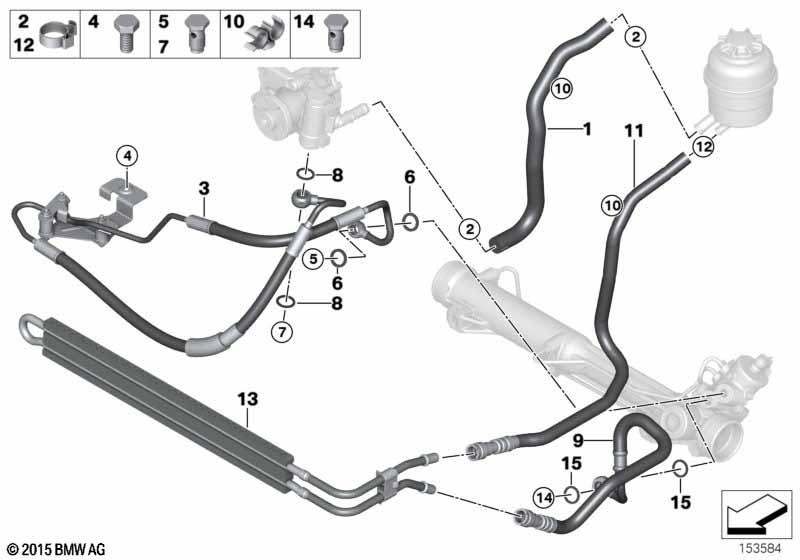

3' E90 325xi Hydro steering-oil pipes

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Suction pipe 1 32416850582
02 Hose clamp 2 32416751127 $1.12
03 Expansion hose 1 32416784347 $305.50
04 Hexagon screw with flange M6X20 1 07119905546 $6.73
05 Banjo bolt with check valve M14X1,5X27,4 1 32416781261 $10.02
06 Gasket ring A14X20-CUSN 2 32411093596 $0.31
06 Gasket ring A14X18-CUSN 2 07119906464 $0.25
07 Hollow bolt with extension M16X28 1 32416781666 $2.47
08 Gasket ring A16X20-CUSN 2 07119906463 $0.33
09 Return pipe 1 32416774858 $91.56 +core
10 Pipe clip 1 32416770363 $1.07
11 radiator return line 1 32416774305 $91.56
12 Hose clamp 1 32416751128 $0.98
13 Power steering loop 1 12/2005 17117522119 $87.55
only in conjunction with
-- Protection cap 1 12/2005 17117562613 $5.12
13 Power steering loop 1 12/2005 17117522119 $87.55
14 Hollow bolt M16X28 1 02/2012 32416783887 $3.98 ENDED
14 Hollow bolt M16X28 1 32416852470
15 Gasket ring A16X20-CUSN 2 07119906463 $0.33
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
