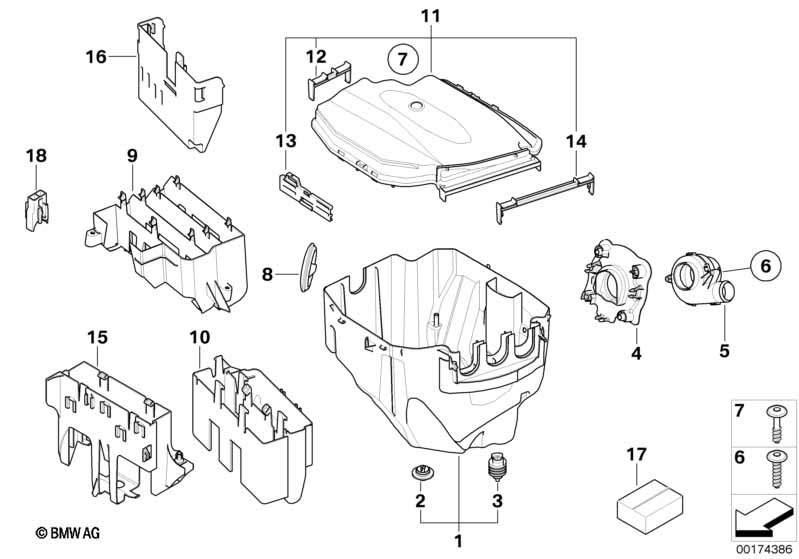

3' E90 330i Control unit box

Control unit box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 E-box 1 12907584147
only in conjunction with
-- Repair kit for E module 1 12907583910 $22.30
02 Water outlet valve 1 12907528871 $0.50
03 Stop buffer 1 12907537064 $3.87
04 Cover without Ventilation 1 12907540948 $4.02
05 E-box fan 1 12907547141 $144.83
only in conjunction with
-- Cable tie L=300MM/B=4,8MM 1 61138377065 $0.35
06 Plastic bolt 2 12907537040 $0.47
07 Plastic bolt 4 12907522588 $0.47
08 Grommet 1 12907528949 $3.37
09 Control unit support 1 12907528940
11 Cover electronic-box 1 12907544577 $29.14 +core
only in conjunction with
-- Repair kit for E module 1 12907583910 $22.30
12 Lock lever 1 12907528935 $0.75
13 Lock lever 2 12907528933 $0.75
14 Lock lever 1 12907528934 $0.75
15 Control unit support 1 12907793465 $11.46
16 Carrier plate 1 12907520902 $3.46
17 Repair kit for E module 1 12907583910 $22.30
18 Fuse carrier X 61131387135 $1.90
only in conjunction with
-- Slider X 61138353716 $0.68
Notes
  • +core = plus core charge (possibility of a return of the old part)
