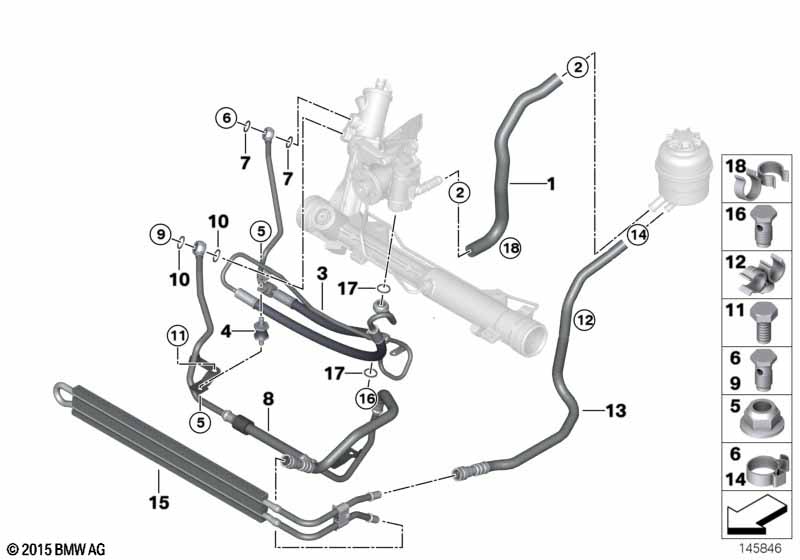

3' E90 330i Hydro steering-oil pipes

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Active steering

S217A=No
01 Suction pipe 1 32416850582
02 Hose clamp 2 32416751127 $1.12
03 Expansion hose 1 32416784335
04 Rubber Mounting H=17 2 32416769256
05 Self-locking hex nut M6-8-ZNNIV SI 4 07119905949 $0.24
06 Banjo bolt with check valve M14X1,5X27,4 1 32416781261 $10.02
07 Gasket ring A14X20-CUSN 2 03/2007 32411093596 $0.31
07 Gasket ring A14X18-CUSN 2 07119906464 $0.25
08 Return pipe 1 32416774309 +core
09 Hollow bolt M16X28 1 02/2012 32416783887 $3.98 ENDED
09 Hollow bolt M16X28 1 32416852470
11 Hex bolt M6X12-8.8-ZNS3 2 07119904094 $0.11 ENDED
11 Hex bolt M6X12-8.8-ZNNIV 2 07119905524 $0.27
12 Pipe clip 1 32416770363 $1.07
13 radiator return line 1 32416774305 $91.56
14 Hose clamp 1 32416751128 $0.98
15 Power steering loop 1 12/2005 17117522119 $87.55
16 Hollow bolt with extension M16X28 1 32416781666 $2.47
17 Gasket ring A16X20-CUSN 2 07119906463 $0.33
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
