3' E91 318d Oil pan/oil level indicator

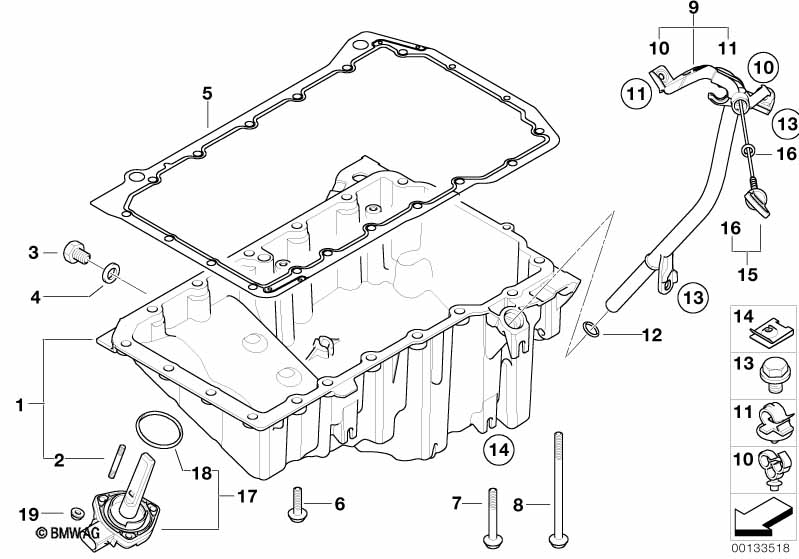

Oil pan/oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11137798372 +core
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42
03 Screw plug M12X16 1 11137535106 $3.68
04 Gasket ring A12X17-CU 1 07119963151 $0.57
05 Gasket Asbestos Free 1 11130139259 $36.71
06 Torx bolt M8X30 15 10/2015 11137800621 $1.08 ENDED
06 ASA-Bolt M8X30 15 11138592611
07 Torx bolt M6X60-ZNNIV SI 2 11137800622 $1.08
08 Torx bolt M8X110 2 11137800625
09 Guide tube 1 11437794615
10 Wire holder, two-place 1 61138380213 $0.35
11 Clip retainer 1 61138368029 $0.43
12 O-ring 14X3 1 11437794698 $1.19
13 Hex bolt with washer M6X14-U1-8.8 2 07119905525 $0.47
14 Clip nut M6-ZNS3 1 11427789289 $1.07
15 Dipstick 1 11437791560
16 O-ring 9X2,2 2 11431717666 $0.73
17 Oil levelling sensor 1 12617508003 $163.50
18 Gasket ring 1 12611744292 $6.42
19 Hex nut BM6-8-ZNNIV SI 3 07129905411 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
