3' E91 330d Intake manifold-supercharg.air duct/AGR

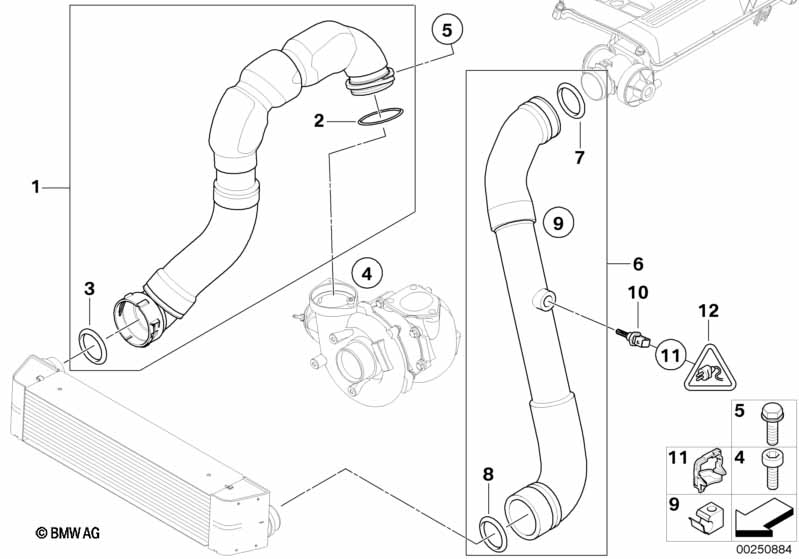

Intake manifold-supercharg.air duct/AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charge air line 1 11617796303 +core
02 Preformed seal 1 11617801222
03 Preformed seal 1 11617791470 $8.20
04 Fillister-head screw M6X16 1 11617788358
05 Torx-bolt with washer M6X20-U1-8.8 1 07129905516 $0.96
06 Charge air line 1 11618506078 $239.17
only in conjunction with
-- Intake air temperature sensor 1 13627792203 $25.98
07 Preformed seal 59,0X67,2X6,2 1 11617790547 $8.20
08 Preformed seal 1 11617791469 $6.65
09 Cable holder 1 11617788406 $0.82
10 Intake air temperature sensor 1 13627792203 $25.98
Only for use with boost-air duct in alu
11 Twist protection 1 11617807095 $0.58
Only for use with boost-air duct in
plastic
11 Twist protection 1 11617807096 $0.58
12 Plug housing 2 POL. 1 12521732460 $6.38
only in conjunction with
-- Flachfederkontakt MDK4 2.8 ELA 1-2,5 MM²/SN 2 12521737773 $0.32
Notes
  • +core = plus core charge (possibility of a return of the old part)
