3' E93 320i Cylinder Head

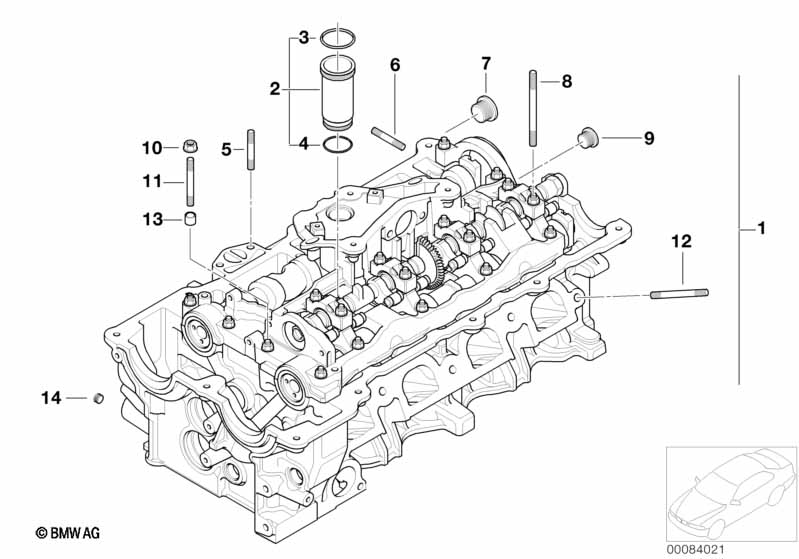

Cylinder Head
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder head with valve gear 1 11127578027
02 Spark plug pipe 4 11377509627 $5.12
03 O-ring 30,2X3,0 4 11377514007 $1.27
04 O-ring 25,3X2,4 4 11377514008 $1.81
06 Stud bolt M7X37 9 07129906003
08 Stud bolt M6X80 8 07129902313
09 Screw plug M14X1,5 2 11127568040 $3.17
10 Flange nut M6 27 11127568178
11 Stud bolt M6X50 19 07129902312
12 Stud bolt M7X60 4 07129904547
13 Dowel D=7,5MM 3 11127606504
14 Screw plug M8X1 1 11127568039 $1.07
