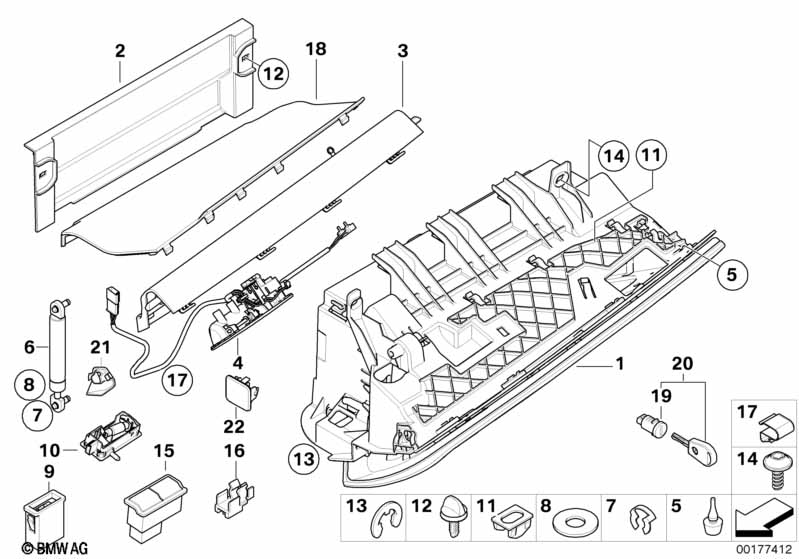

3' E93 328i Glove box with airbag

Glove box with airbag
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Leather "Dakota"/grau

LCAD=Yes
01 Glove box with airbag GRAU 1 09/2011 51169202275 $901.99
For vehicles with
Sensatec/cream-beige
or
Leather "Dakota"/creambeige

KAGE=Yes

LCGE=Yes
01 Glove box with airbag CREAMBEIGE 1 51169202276 $901.99
For vehicles with
Sensatec/black
or
Leather "Dakota/oyster"
or
Leather "Dakota"/korall-red
or
Leather "Dakota"/jade gray
or
Leather "Dakota" saddle brown
or
Leather "Dakota"/schwarz
or
Leather "Novillo"/palladium-silber
or
Leather "Novillo"/fuchs-red
or
Leather "Novillo"/bambus-beige
or
Leather Novillo/palladium-silber/black
or
Leather Novillo/fuchs-rot/black
or
Leather "Novillo"/black

KASW=Yes

LCCX=Yes

LCD1=Yes

LCD2=Yes

LCD3=Yes

LCSW=Yes

NCH1=Yes

NCH2=Yes

NCH3=Yes

NCH4=Yes

NCH5=Yes

NCSW=Yes
01 Glove box with airbag SCHWARZ 1 51169202272 $901.99
02 Cover 1 51167120408 $3.99
03 Catch upper part 1 51167151354 $80.95 ENDED
03 Catch upper part 1 51166812259
04 Catch lower part 1 51167151355 $112.57
05 Rubber buffer 3 51168244385 $1.13
06 Glove box damper 1 51167002385 $21.72
07 Axial securing clip 2 07129905714 $1.03
08 Felt washer D14,D5 X 0,6 MM 2 07147131736 $0.11
09 Support f chargeable handlamp 1 61138352336 $17.23
10 Glove box light 1 63316962045 $8.17
11 Lock insert 2 64111376327 $0.80
12 Lock 2 51711916197 $1.35
13 Circlip 2 63129904300 $0.53
14 Fillister head screw 2 07147122391 $0.38
14 Screw 4X14 4 07149115641 $0.27
14 Fillister head screw ISA M6X16 ZN SW 3 07149165429 $0.45
14 Fillister head screw 3 61317043728 $0.38
15 Hotel position switch 1 61318379766 $59.00
16 Holder 1 51169115664 ENDED
17 Fixing clamp 1 07149139223 $0.18
18 Covering inner 1 51167151353
20 Rep.kit f lock cylinder 1 51167001461 $41.73
21 Insert left 1 51169143563 $2.37
21 Insert right 1 51169143564 $2.37
22 Dummy cover for USB 1 51169143943 $2.50
Notes
  • ENDED = the part has been discontinued (no longer available).
