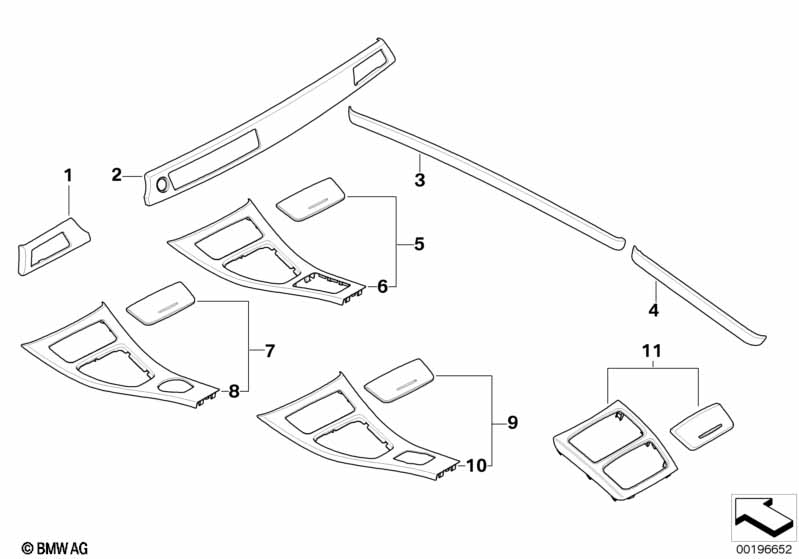

3' E93 328i Individual wood trim covers

Individual wood trim covers
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i only applies to
individual vehicles with SA 940
----------------------------------------
Standard parts are also installed in
individual vehicles. It is necessary to
check beforehand that the required
spare part is not a standard part.
---------------------------
01 Cover, dashboard, left PIANOLACK SW 1 12/2006 51457963937 NoS
01 Cover, dashboard, left ROTBRAUN 1 12/2006 51457963961 NoS
01 Cover, dashboard, left MUSCHELAHORN 1 12/2006 51457963985 NoS
01 Trim cover for I-panel w/o inlay, left PIANOLACK SW 1 12/2006 51457977995 NoS
02 Cover, dashboard, right PIANOLACK SW 1 12/2006 51457963938 NoS
02 Cover, dashboard, right ROTBRAUN 1 12/2006 51457963962 NoS
02 Cover, dashboard, right MUSCHELAHORN 1 12/2006 51457963986 NoS
02 Trim cover for I-panel w/o inlay, right PIANOLACK SW 1 12/2006 51457977996 NoS
03 Trim cover, door, left PIANOLACK SW 1 12/2006 51417963933 NoS
03 Trim cover, door, right PIANOLACK SW 1 12/2006 51417963934 NoS
03 Trim cover, door, left ROTBRAUN 1 12/2006 51417963957 NoS
03 Trim cover, door, right ROTBRAUN 1 12/2006 51417963958 NoS
03 Trim cover, door, left MUSCHELAHORN 1 12/2006 51417963981 NoS
03 Trim cover, door, right MUSCHELAHORN 1 12/2006 51417963982 NoS
04 Trim cover, side trim, left PIANOLACK SW 1 12/2006 51437963935 NoS
04 Trim cover, side trim, right PIANOLACK SW 1 12/2006 51437963936 NoS
04 Trim cover, side trim, left ROTBRAUN 1 12/2006 51437963959 NoS
04 Trim cover, side trim, right ROTBRAUN 1 12/2006 51437963960 NoS
04 Trim cover, side trim, left MUSCHELAHORN 1 12/2006 51437963983 NoS
04 Trim cover, side trim, right MUSCHELAHORN 1 12/2006 51437963984 NoS
07 Set, decor panels, center console PIANOLACK SW 1 12/2006 51167963941 NoS
07 Set, decor panels, center console ROTBRAUN 1 12/2006 51167963965 NoS
07 Set, decor panels, center console MUSCHELAHORN 1 12/2006 51167963989 NoS
08 Decor panel for centre console PIANOLACK SW 1 03/2009 51167963942 NoS
08 Decor panel for centre console ROTBRAUN 1 03/2009 51167963966 NoS
08 Decor panel for centre console MUSCHELAHORN 1 03/2009 51167963990 NoS
For vehicles with
On-board monitor with TV
or
Navigation system Business
or
Navigation system Professional

S602A=Yes

S606A=Yes

S609A=Yes
09 Set, decor panels, center console PIANOLACK SW 1 09/2008 51167967791 NoS
09 Set, decor panels, center console ROTBRAUN 1 09/2008 51167967793 NoS
09 Set, decor panels, center console MUSCHELAHORN 1 09/2008 51167967795 NoS
10 Decor panel for centre console PIANOLACK SW 1 03/2009 51167967797 NoS
10 Decor panel for centre console ROTBRAUN 1 03/2009 51167967799 NoS
10 Decor panel for centre console MUSCHELAHORN 1 03/2009 51167967801 NoS
11 Cover, rear console, front PIANOLACK SCHW. 1 12/2006 51167963921
11 Cover, rear console, front ROTBRAUN 1 12/2006 51167963945 NoS
11 Cover, rear console, front MUSCHELAHORN 1 12/2006 51167963969 NoS
Notes
  • NoS = No Stock (Part, central, not in stock.)
