X3 F25 X3 35iX Trunk lid

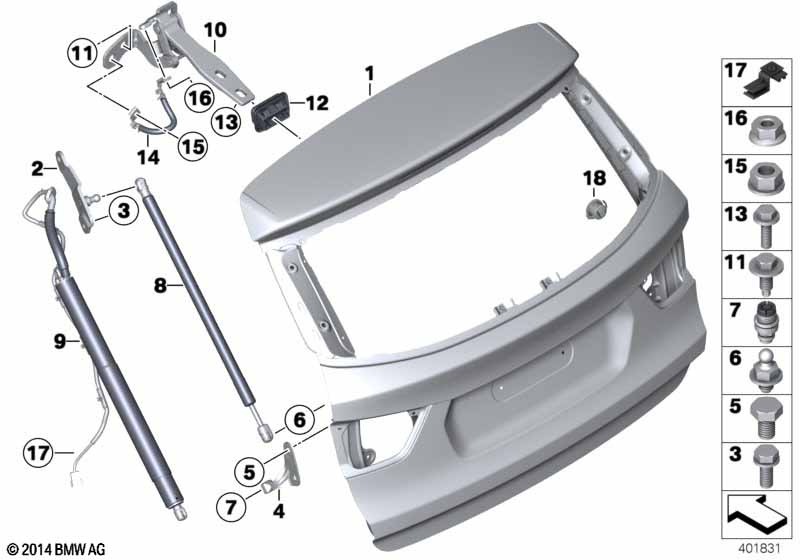

Trunk lid
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trunk lid 1 41007275066
02 Retaining mount, rear left 1 51247262177
02 Retaining mount, rear right 1 51247262178
For vehicles with
automatic trunk lid mechanism

S316A=Yes
02 Retaining mount, rear left 1 51247262179
02 Retaining mount, rear right 1 51247262180
03 Isa screw with washer M8X20-U1-ZNS3 4 22116775521 $0.85
04 Bracket lower left 1 51247211285
04 Bracket lower right 1 51247211286
05 Hex bolt M10X25 8.8 2 07119908569
06 Ball pin 2 07147159561 $2.34
07 Stop buffer 2 07/2015 51247317613
For vehicles with
automatic trunk lid mechanism

S316A=No
08 Gas pressurized spring, trunk lid 2 08/2014 51247211289
For vehicles with
automatic trunk lid mechanism

S316A=Yes
09 Spindle drive, left 1 04/2015 51247232003
09 Spindle drive, right 1 04/2015 51247232004 +core
10 Left trunk lid hinge 1 11/2011 03/2016 41627311231
10 Right trunk lid hinge 1 11/2011 03/2016 41627311232
11 Hex bolt with washer M8X24 6 07147154122 $1.51
12 Hinge shackle, trunk lid 2 51767329451
13 Hex bolt with washer M10X25-10.9ZNS3 2 07119905147 $1.07
14 Earth strap, hinge/trunk lid 1 51247273679
15 Flange nut M5 1 07141732625 $0.14
16 Hex bolt M5X8-U1-8.8 1 07119907345
For vehicles with
automatic trunk lid mechanism

S316A=Yes
17 Bracket, plug connection black 2 61138365570 $0.93
Notes
  • +core = plus core charge (possibility of a return of the old part)
