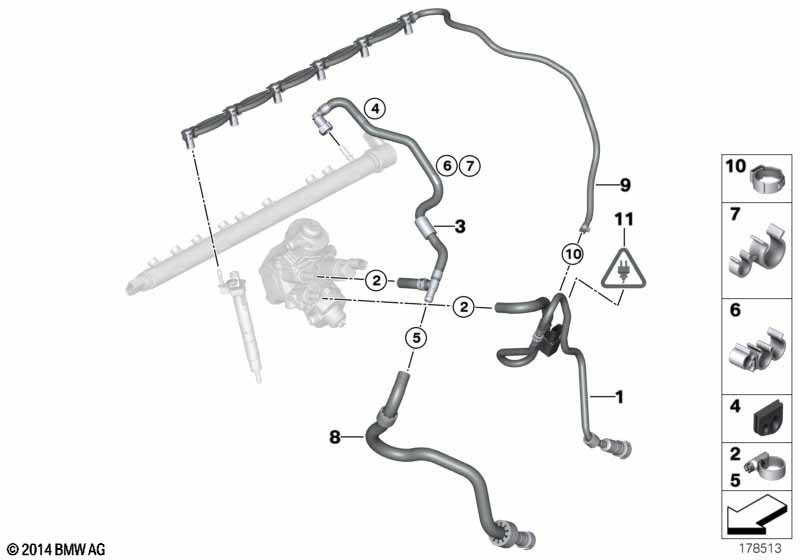

5' F07 GT 535d Fuel pipes / Mounting parts

Fuel pipes / Mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel feed line 1 13537823396 +core
02 Hose clamp L15-18 2 11151727509 $1.02
03 Fuel return line 1 13537823401 +core
04 Grommet 1 13537801976
05 Hose clamp L15-19 1 07129952107 $0.93
06 Wiring clip, triple 1 13537823414
08 Fuel return line 1 13537823402
09 Overflow oil line 1 13538511667
10 Hose clamp 8,3-10 1 13537795244 $0.77
Notes
  • +core = plus core charge (possibility of a return of the old part)
