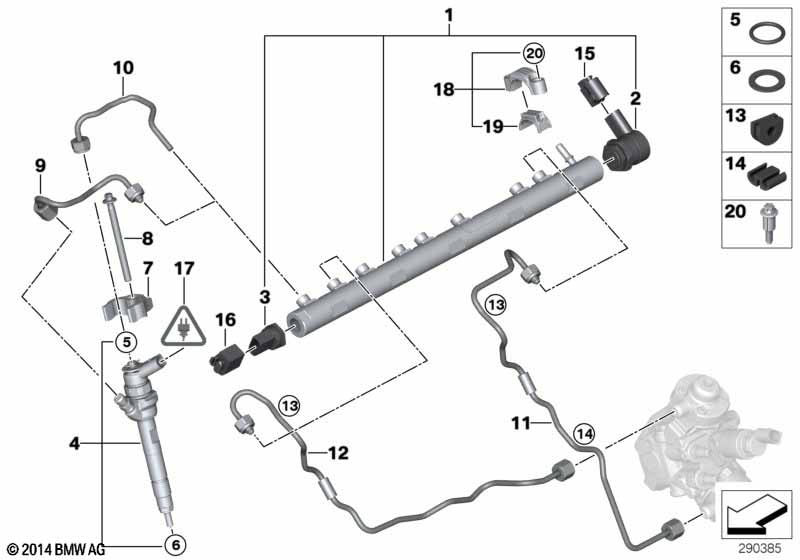

5' F07 GT 535d High pressure accumulator/injector/line
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure accumulator | 1 | 13537805423 | ||||||
| 02 | Pressure regulating valve | 1 | 13537801992 | ||||||
| 03 | Pressure sensor | 1 | 09/2018 | 13537800602 | |||||
| 03 | Pressure sensor | 1 | 13538577623 | ||||||
| 04 | RP injector | 6 | 13537823461 | ||||||
| 04 | Exch. injector | 6 | 13537823462 | ||||||
| 05 | O-ring | 6 | 13537794553 | $4.38 | |||||
| 06 | Gasket ring | 6 | 13532247156 | $3.63 | |||||
| 07 | Clamping jaw, injector | 6 | 03/2015 | 13537797881 | ENDED | ||||
| 07 | Clamping jaw, injector | 6 | 13538578607 | ||||||
| 08 | Screw | 6 | 13537805256 | ||||||
| 09 | Pressure hose assy | 1-3 | 3 | 13537797885 | |||||
| 10 | Pressure hose assy | 3/4 | 3 | 13537797886 | |||||
| 11 | Pressure hose assy | 1 | 11/2016 | 13537823483 | ENDED | ||||
| 11 | Pressure hose assy | 1 | 13538596875 | ||||||
| only applies to | |||||||||
| -- | Exchange high-pressure pump | CP4.2 | X | 13518597821 | |||||
| 12 | Pressure hose assy | 1 | 11/2016 | 13537823484 | ENDED | ||||
| 12 | Pressure hose assy | 1 | 13538596876 | ||||||
| only applies to | |||||||||
| -- | Exchange high-pressure pump | CP4.2 | X | 13518597821 | |||||
| 13 | Grommet | 2 | 13537812876 | ||||||
| 14 | Absorber | 1 | 13537812878 | ||||||
| 18 | Support | 3 | 11128519494 | ||||||
| 19 | Decoupling element | 3 | 11127809138 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
