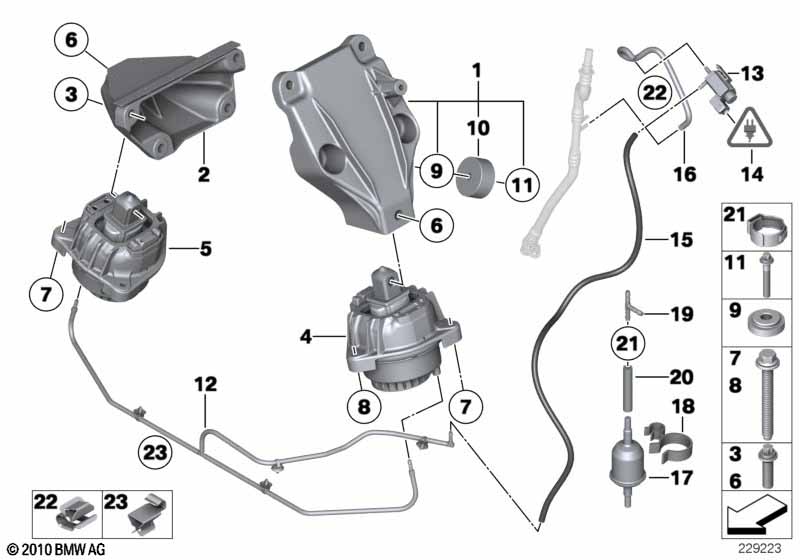

5' F07 GT 535d Engine Suspension

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine supporting bracket, left 1 22116788557 +core
02 Engine supporting bracket, right 1 22116777624
03 Torx screw M10X40-Z1-10.9 8 07129903976 $1.05
04 Engine mount 1 22116777371 +core
Required for repair
-- Hex bolt with washer M8X130 ZNNIV SI 1 07119905893
-- Hex bolt with washer M8X90 ZNNIV SI 1 07119907017
05 Engine mount 1 22116777371 +core
Required for repair
-- Hex bolt with washer M8X130 ZNNIV SI 1 07119905893
-- Hex bolt with washer M8X90 ZNNIV SI 1 07119907017
06 Torx-bolt with washer M12X1,5X40-ZNS3 2 12/2014 07129905834 $4.18 ENDED
06 Star-socket screw BM12X1,5X40-U1- 2 07119908507
07 Hex bolt with washer M8X90 ZNNIV SI 5 07119907017
08 Hex bolt with washer M8X130 ZNNIV SI 1 07119905893
09 Bush DA20 DI8,5 L9,5 1 09/2009 22116795377
10 Additional weight 1 04/2016 22116788421 ENDED
10 Additional weight 1 22326872625
11 ASA-Bolt M8X50-U1-ZNS3 1 09/2009 07129907145
12 Vacuum pipe 1 22116777607
13 Electr.valve 1 11747810831 $46.70
15 Vacuum hose red 3,5X2,0 X 11657796857 $16.43
16 Vacuum hose black 3,5X2,0 X 11747797129 $17.14
22 Clip 1 12521437136 $0.63
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
