5' F07 GT 535d Rear stabilizer bar/Dynamic Drive

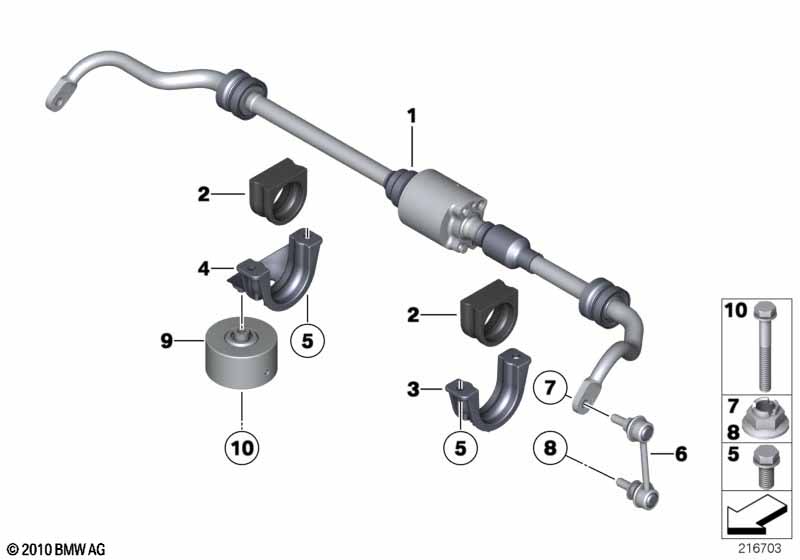

Rear stabilizer bar/Dynamic Drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Dynamic Drive
or
Chassis & suspens. setup"Adaptive Drive"

S229A=Yes

S2VAA=Yes
01 Active stabilizer bar 1 37126781256 $1542.20
02 Stabilizer rubber mounting 2 37126761022 $5.50
03 Stabilizer support 1 37106869955
left
04 Bracket for right stabilizer bar 1 37106869957
05 Screw self-tapping M10X40-10.9 4 33556776944
06 Rear swing support 2 33556786429 $50.15
Required for repair
-- Hex nut wiht flange M12X1,5-10-ZNS3 4 37106789678 $0.75
07 Hex nut wiht flange M12X1,5-10-ZNS3 2 37106789678 $0.75
08 Hex nut wiht flange M12X1,5-10-ZNS3 2 37106789678 $0.75
09 Vibration absorber 60HZ 1 33506852838
right
10 Hex bolt with washer M8X75-Z1-ZNS3 1 01/2014 07119903947
10 Hex bolt M8X80-U2-10.9 1 01/2014 07119908566
