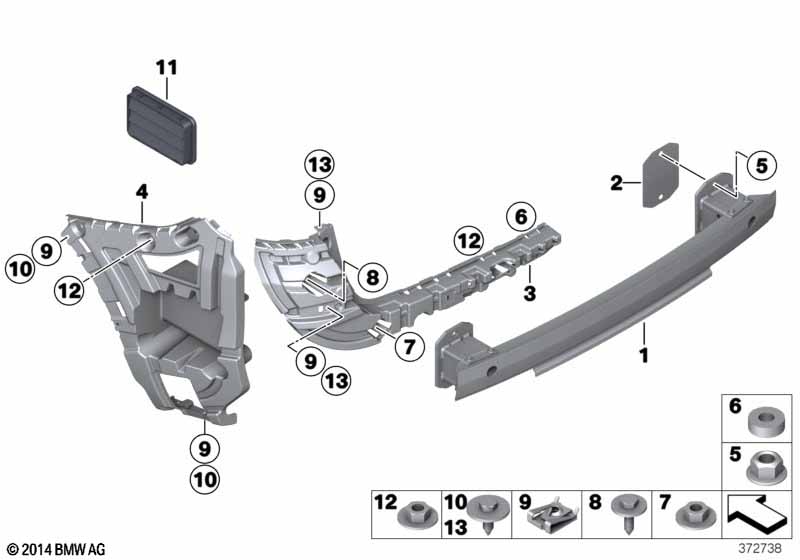

X4 F26 X4 28iX Carrier, rear

Carrier, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Trailer coupling

S3ACA=No
01 Carrier, bumper rear ECE 1 51127210071 +core
02 Gasket 2 02/2017 51127210076 ENDED
02 Gasket 2 51127400673
03 Mount for bumper, left rear center 1 04/2014 51127338759
03 Mount for bumper, right rear center 1 04/2014 51127338760
04 Mount, bumper rear left 1 04/2014 51127338765
04 Mount, bumper rear right 1 04/2014 51127338766
05 Hex nut 4 07147266441
06 Gasket ring 4 51127256354
09 C-clip nut 10 04/2014 51717065773
10 Hex bolt TS5X17 SW8 D=22 4 04/2014 07149126886
11 Rear ventilation 2 04/2014 64229122453 $11.95
12 Hex nut with plate M6 18 04/2014 07147134319 $1.05
13 Hex bolt TS5X20 SW8 D=16 8 04/2014 07147148437 $0.44
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
