X4 F26 X4 28iX Door window lifting mechanism front

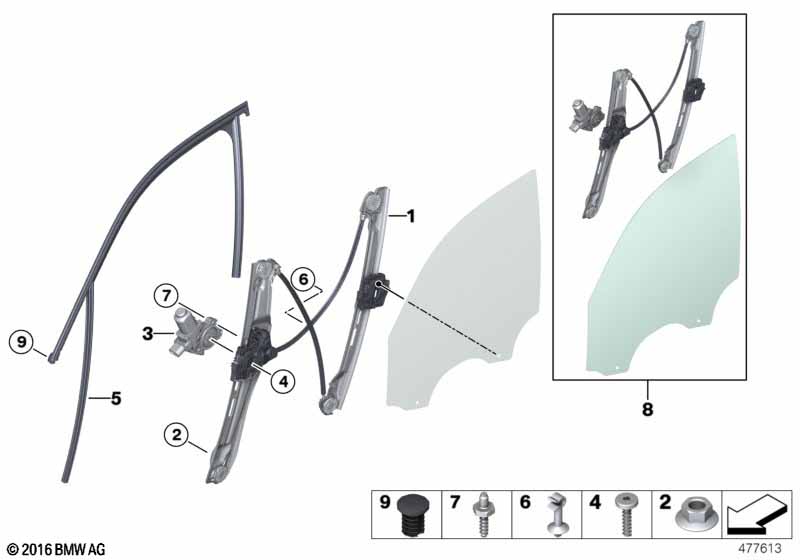

Door window lifting mechanism front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i IMPORTANT NOTICE!
On vehicles built prior to 04/2013,
following
liquidation of the previously valid part
numbers for Pos. 1 and 3, the set 7 382
135
should be ordered. Each set contains a
left
and a right window pane and includes the
left and right window lift assemblies
(motor and rail).
01 Window lifter without motor,front left 1 04/2013 51337355635
01 Window lifter without motor,front right 1 04/2013 51337355636
02 Hex nut 10 07147180812 $0.64
03 Drive for window lifter, left 1 04/2013 67627322747
03 Drive for window lifter, right 1 04/2013 67627322748
04 Torx screw 6 04/2013 51337185707 $1.53
05 Window guide, left front door 1 12/2015 51317335505
05 Window guide, left front door 1 12/2015 51337454165
05 Window guide, right front door 1 12/2015 51317335506
05 Window guide, right front door 1 12/2015 51337454166
06 Clip 2 04/2013 07147207826
07 Threaded bolt 2 04/2013 07146955339 $1.00
09 Plug-in retainer 2 05/2011 41537408277
