X4 F26 X4 28iX Locking system, door, front

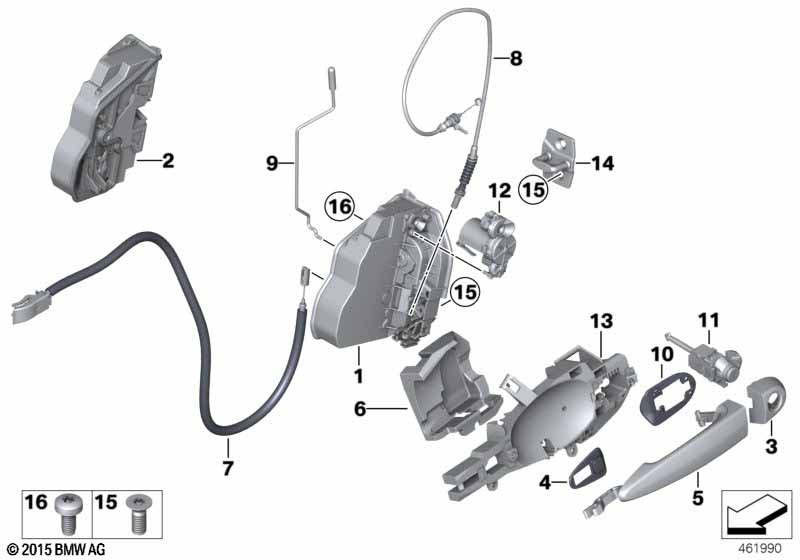

Locking system, door, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=No

S322A=No

S8TGA=Yes
01 System latch, left 1 04/2007 51217318411
01 System latch, left 1 51217202149
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=Yes

S322A=Yes

S8TGA=Yes
01 System latch, left 1 04/2014 51217318411
01 System latch, left 1 04/2014 51217202149
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=Yes

S322A=Yes

S8TGA=No
01 System latch, left 1 04/2014 51217318411
01 System latch, left 1 04/2014 51217202149
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=Yes

S322A=No

S8TGA=Yes
01 System latch, left 1 04/2014 51217318411
01 System latch, left 1 04/2014 51217202149
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=Yes

S322A=No

S8TGA=No
01 System latch, left 1 04/2014 51217318411
01 System latch, left 1 04/2014 51217202149
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=No

S322A=Yes

S8TGA=Yes
01 System latch, left 1 04/2014 51217318411
01 System latch, left 1 04/2014 51217202149
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=No

S322A=Yes

S8TGA=No
01 System latch, left 1 04/2014 51217318409 ENDED
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=No

S322A=No

S8TGA=No
01 System latch, left 1 51217318409 ENDED
For vehicles with
Alarm system
and
Thiefproofing device

S302A=No

S8TGA=No
02 System latch, right 1 51217318416 ENDED
For vehicles with
Alarm system
or
Thiefproofing device

S302A=Yes

S8TGA=Yes
02 System latch, right 1 05/2007 51217318424 ENDED
02 System latch, right 1 51217202146 $171.13
For vehicles with
Alarm system
and
Comfort access
and
Thiefproofing device

S302A=No

S322A=No

S8TGA=No
02 System latch, right 1 51217318416 ENDED
03 Covering door, primed right 1 51217162432 $22.50
03 cover, lock cylinder primed, left 1 51217162437 $27.07
For vehicles with
Light package

S563A=Yes
03 cover, lock cylinder primed, left 1 51217162439 $27.41
04 Handle bracket base, left 1 51217060293 $1.35
04 Handle bracket base, right 1 51217060294 $1.35
05 Handle bracket, left prime-coated 1 51217207561 $22.10
05 Handle bracket, right prime-coated 1 51217207562 $22.10
For vehicles with
Comfort access

S322A=Yes
05 grab handle, paint finish, left CODE - UNI/MET. 1 51217286161 NoS
05 grab handle, paint finish, right CODE - UNI/MET. 1 51217286162 NoS
06 Door handle encapsulation, left 1 51217331739
06 Door handle encapsulation, right 1 51217331740
07 Bowden cable, door opener 2 51217205899
08 Bowd.cable,outside door handle front 2 51217319349
09 Operating rod, door front left 1 51217205795
09 Operating rod, door front right 1 51217205796
10 Lock cylinder base left 1 51217060667 $1.60
10 Lock cylinder base right 1 51217060668 $1.60
11 Lock (with key code) 1 51217290471
11 Lock cylinder with key, left 1 51217290473
12 Adaptor left 1 51217184907 $26.15
13 Carrier, outside door handle, left 1 51217193263 $96.13
13 Carrier, outside door handle, right 1 51217193264 $96.13
14 Catch bracket 2 51217312545
15 Torx-countersunk head screw ISA M8X28 4 51217130110 $0.52
16 Torx bolt M6X13 ZNNID SW 6 07147186859 $0.53
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part, central, not in stock.)
