X4 F26 X4 28iX Underfloor coating

Underfloor coating

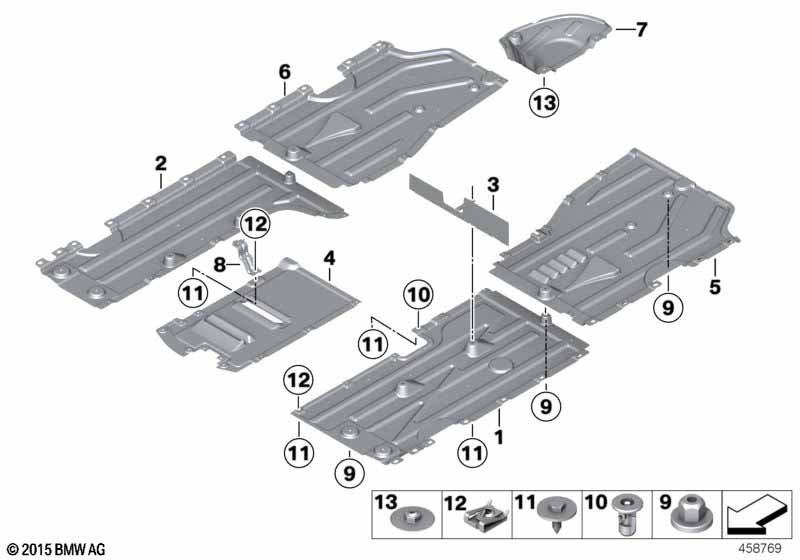

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Underbody paneling, front left 1 51757213671
02 Underbody paneling, front right 1 51757213672
04 Underfloor coating center 1 51757213668
05 Underbody panelling, rear left 1 51757213673
06 Underbody panelling, rear right 1 51757213674
08 Bracket center 1 51757213675
09 Plastic nut 2 07147336362
10 Expanding nut L=18.4, DMAX=18 8 07147201307 $0.25
11 Hex bolt TS5X17 SW8 D=22 X 07149126886
12 C-clip nut X 51717065773
